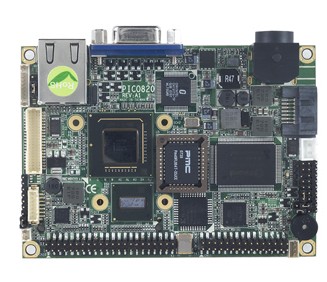

PICO820 - одноплатный компьютер Pico-ITX с низким энергопотреблением на базе Intel Atom Z510 / Z530 (1.1 - 1.6 Ггц)

Недоступно для заказа

Introduction
The PICO820 supports ultra low power Intel® Atom™ Z510 1.1GHz and Z530 1.6GHz processors at 533MHz FSB with the Intel® System Controller Hub (SCH) US15W, a low power chipset in one small 22x22 mm package. The integrated Intel® Graphics Media Accelerator 500 (Intel® GMA 500) offers advanced graphics and 3D performance. Moreover, the Intel® Atom™ processor Z500 series supports SSE3 that improves performance on multimedia and gaming applications, as well as, Hyper-Threading technology, Intel® Virtualization Technology and Low TDP.

Features
Ultra low power Intel® Atom™ processor Z500 series
Intel® System Controller Hub US15W
Compact size: 100 x 72mm
2 COM and 4 USB 2.0 supported
CRT/LVDS LCD supported
1 SATA-300 port
1 10/100/1000Mbps Ethernet
1 SDIO port
+5V only single voltage DC-in supported
Minimum 8 Watt power requirenent

Intel® Atom ™ processor Z510 1.1 GHz and Z530 1.6 GHz onboard with FSB 400/533 MHz
System Memory System Memory 1 x 200-pin SO-DIMM supports DDR2-400/533 max. up to 2GB
Intel® System Controller Hub US15W BIOS BIOS Phoenix-Award
1 x CompactFlashTM type-II M
Watchdog Timer Watchdog Timer 255 levels, 1~255 sec.

1 x PS/2 (through I/O pin-header)
2 x RS-232 (through I/O pin-header)
1 x SDIO (through I/O pin-header)
SATA SATA 1 x SATA-300
Detect CPU/system temperature and voltage
Ethernet Ethernet 1 port as 10/100/1000Mbps supports Wake-on-LAN,
RPL/PXE Boot ROM with Realtek RTL8111B
HD Codec audio as MIC-in/Line-in/Line-out
with Realtek ALC888
USB USB 4 x USB 2.0
System management bus for advanced
monitoring/control interface
Digital I/O Digital I/O 4 channels IN and 4 channels OUT
Display CRT/LVDS LCD supported

Battery Battery Lithium 3V/225 mAH

*Intel® Atom ® ™ Z530 @1.6 GHz, 1GB DDR2 Max. RMS: +5V @ 1.625A
*Intel® Atom ™ Z510 @1.1 GHz, 1GB DDR2 Max. RMS: +5V @ 1.451A

Size Size 100 x 72 mm
Temperature Temperature 0°C ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing

Ordering Information
PICO820VGA-Z510 (P/N-E38H820100)
Pico-ITX SBC with Intel® Atom™ Z510 1.1 GHz CPU, CRT/LVDS LCD, 10/100/1000Mbps, SATA
PICO820VGA-Z530 (P/N-E38H820101)
Pico-ITX SBC with Intel® Atom™ Z530 1.6 GHz CPU, CRT/LVDS LCD, 10/100/1000Mbps, SATA
5938H820010E
PCIO820 COM x 2 + audio cable
5938H820000E
PICO820 USB x 4 + Mini DIN cable
