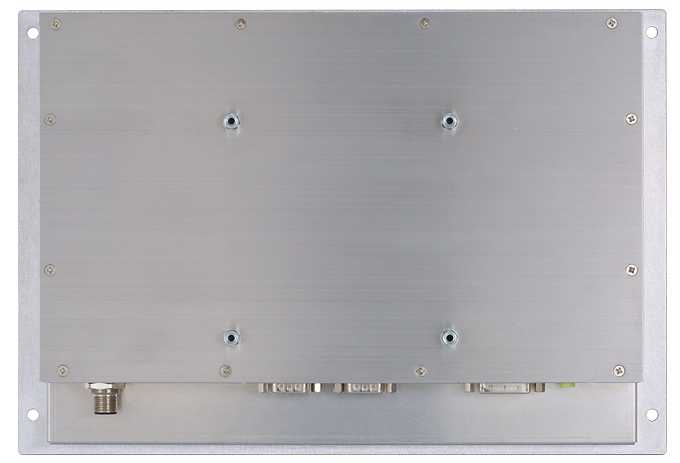

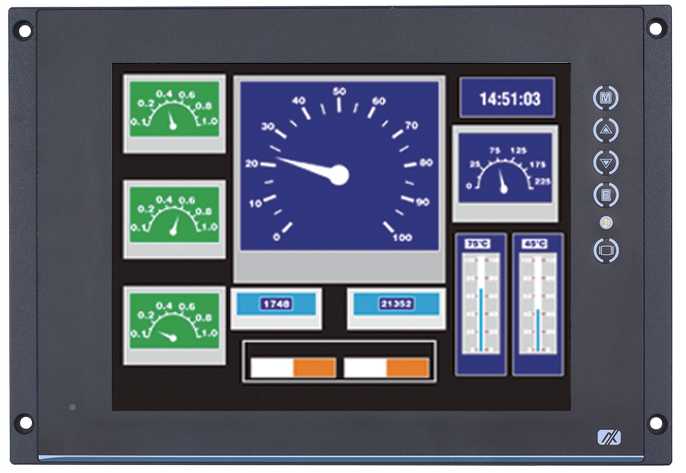

P6105 - Панельный TFT LCD-монитор 10.4″ XGA, 500 nit, резистивный экран, IP-65, железнодорожный стандарт EN 50155, -25º ~ +55º C

Информационный листок (англ.), PDF

P6105
10.4" XGA TFT EN 50155 Railway Touch Display (-25_C to +55_C)

Introduction

The P6105, a 10.4" EN50155 certified touchscreen railway display is designed
specifically for transportation application. The rugged display offers a
resistive touchscreen with 500 nits high brightness and has LED backlighting for
power saving. It is equipped with a RS-232 touch control interface, and multiple
video inputs of DVI-D, HDMI, which offers customers a variety of connection
options. The 10.4-inch EN50155-certified railway touch monitor adopts extended
temperature technology and supports a wide temperature range from -25_C to
+55_C. Its friendly fanless cooling system design and super compact ID aimed at
rolling stock as well as harsh environments. The railway touchscreen display has
an industrial-grade IP65/NEMA 4/12 compliant metal front bezel which resists
water spillage and is specifically designed for railway sector.

Front Bezel NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel 10.4" TFT XGA LCD
Max Colors 16.2M/262k
Active Area (mm) 210.4 x 157.8
Max. Resolution 1024 x 768 pixels
Display Mode VGA 640 x 480 (60/72Hz)
SVGA 800 x 600 (60/72Hz)
XGA 1024 x 768 (60/72Hz)
Pixel Pitch (mm) 0.0685 x 0.2055
Backlight MTBF (hrs) 50,000 hrs
Viewing Angle (H/V) 176_/176_
Response Time 25ms
Contrast Ratio 1000 (TYP.)
LCD Brightness (cd/m?) 500 nits
Display Control OSD (on screen display)
I/O Interface 1 x RS-232 for touchscreen version
1 x HDMI
1 x DVI-D
1 x DC power input
1 x RS-232 for IR remote control
I/Touchscreen Resistive type
Power Adapter 24VDC or 110VDC power input
Power Comsumption 24 V, 16 W
Operating Temperature -25_C ~ +55_C (-13_F ~ +131_F)
Dimensions (W x D x H) 310 x 49 x 214 mm (12.20" x 1.94" x 8.43")
Weight (net/gross) 2.2 kg (4.85 lb) / 3.45 kg (7.61 lb)
Mounting Panel mount
VESA arm
Certification CE, EN 50155
