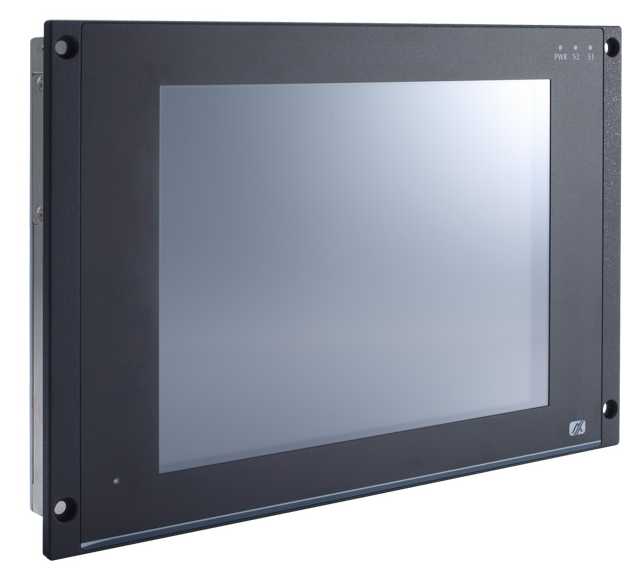

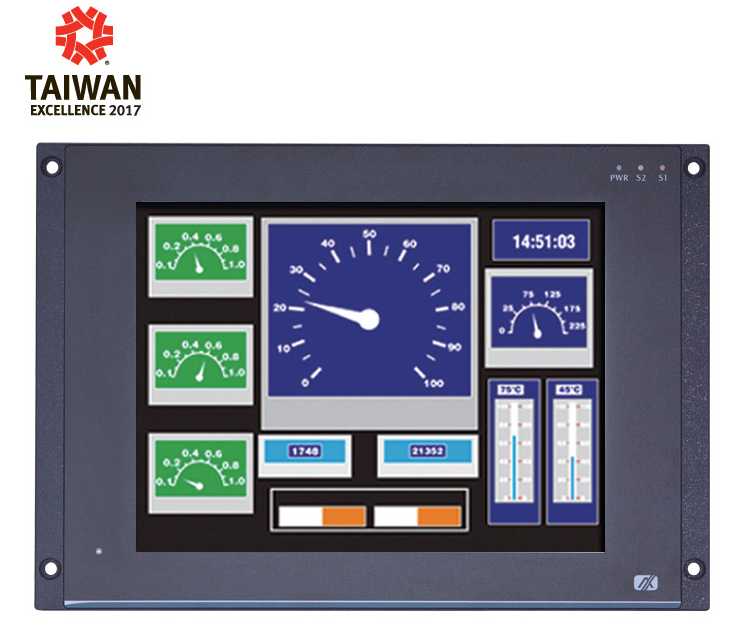

GOT712-837 - Панельный железнодорожный компьютер 12.1" XGA, 800 nit, Intel Atom E3845 1.91 ГГц, IP-65, EN 50155, -25º ~ +70º C

Информационный листок (англ.), PDF

GOT712-837
12.1" XGA TFT EN 50155 Railway Fanless Touch Panel PC with Intelr AtomT Processor E3845 1.91 GHz (-25 C to +70 C )

Sunlight readable 12.1" XGA high brightness (800 nits)
Fanless with Intelr AtomT processor E3845 1.91 GHz

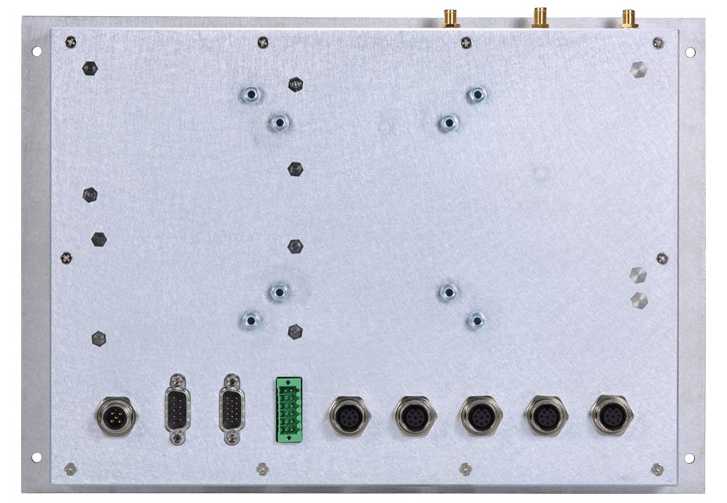

All lockable connectors design
Auto-dimming for different environment
- 25 C to +70 C wide temperature range
EN 50155 certified for railway application

LCD Panel 12.1" XGA TFT LCD
800 nits
1024 x 768 pixels

CPU Intelr AtomT processor E3845 1.91 GHz (Bay Trail)
Chipset SoC integrated
System Memory DDR3 4 GB (default) or 8 GB memory onboard
BIOS AMI

COM 2 x isolated RS-232/422/485 (M12, A-coded)
USB 2 x USB 2.0 (M12, A-coded)
Ethernet 2 x isolated 10/100/1000 Mbps (M12, X-coded)
Display N/A
Audio Line out/Line in/Speaker out (D-sub)

Storage 16 GB Flash onboard
1 x mSATA

Expansion 2 x PCI Express Mini Card
Others 1 x isolated CAN bus (D-sub)
1 x isolated DIO (6 IN/2 OUT) (phoenix type)
1 x isolated DC for power input (M12, A-coded)

Touchscreen Alternative 5-wire resistive touch panel or keyboard

Front Bezel IP65, NEMA 4 rugged protection, aluminum front bezel
Power Supply 16.8V to 30V DC or 77V to 137.5V DC
10ms hold up time (S2)
Power Comsumption 35W
Watchdog Timer 255 levels, 1 ~ 255 sec.

Operating Temperature -25 C ~ +70 C (-13 F ~ +158 F)
Relative Humidity 10% ~ 95% @ 40 C, non-condensing
Vibration TBD
Dimensions (W x D x H)
Weight (net/gross) 5.54 kg (12.21 lb)/3 kg (6.61 lb)
Certification EN50155, EN50121-3-2 EMC, EN61373 (Shock/Vibration), EN45545 (fire) certified
Compliance with UIC612-01 (keypad)
EOS Windows 10 (IoT), Windows 10, Windowsr 8, WES 8, Windows 7, WES 7
Mounting Suspension mount
VESA mount
