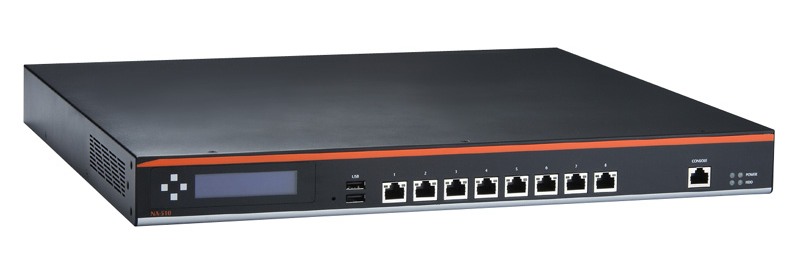

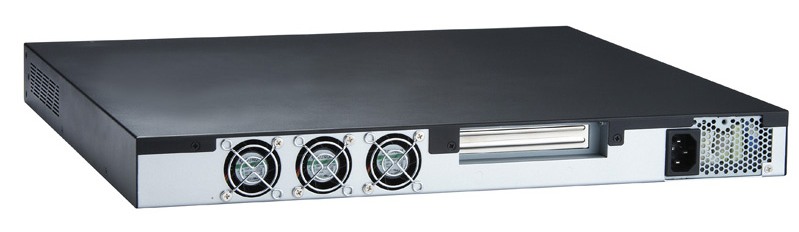

NA-510 - Сетевая платформа 1U 19" c 8 гигабитными портами на базе LGA1156 Intel Core i5-660 / i3-540 / G6960, i7-860 / i5-750

Информационный листок (англ.), PDF

NA-510
1U Rackmount Network Appliance Platform with LGA1156 Socket Intelr Core Processor and 8 LANs

Form Factor 1U rackmount
CPU LGA1156 socket Intel i5-660 / i3-540 / G6960, i7-860 / i5-750 processors
Chipset Intel Q57
System Memory 2 x DIMM DDR3-800/1066/1333, up to 8 GB
(unbuffered non-ECC)
BIOS Award 64Mbit PnP Flash
Ethernet 8 x 10/100/1000 Mbps (Intelr 82574L, Intelr 82578DM)
LAM Bypass 2 pairs
LAN Module N/A
Storage 2 x 2.5" SATA HDD
1 x Compact FlashT type-II,
1 x 3.5" SATA HDD/ DOM SATA2 type (optional)
Expansion 1 x 32bit/33MHz MiniPCI
1 x PCIe x8
I/O Interface 1 x console (RJ type)
2 x USB 2.0
Power Supply 270W ATX
LCM Module Yes
Operating Temperature 0 ~ +45 C (+32 F ~ +113 F)
Dimensions
(W x D x H) 44 x 430 x 394.4 mm (1.73"x 16.93"x 15.52")
Weight (net/gross) 8.2 kg (17.64 lb)/9.8 kg (21.61 lb)
OS Linux Kernel
FreeBSD
Certifications FCC class A
CE class A
