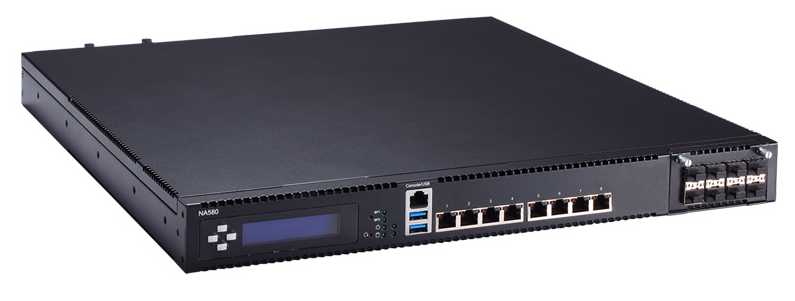

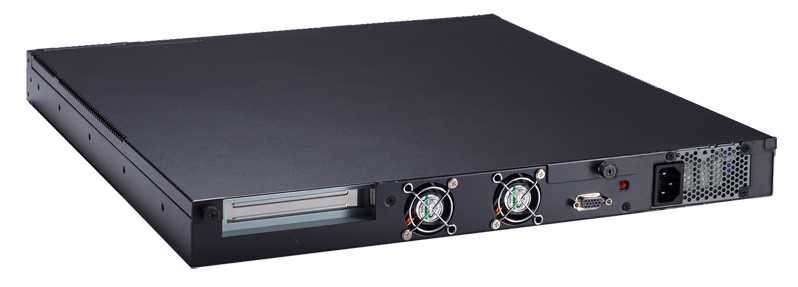

NA-580 Сетевая платформа 1U 19" c 8 (+) гигабитными портами, LGA1151 Intel Xeon E3 / Core, чипсет Intel C236/H110, Linux

Информационный листок (англ.), PDF

NA580
1U Rackmount Network Appliance Platform with LGA1151 Socket Intel Xeon E3 / Core Family Processor and 8 LANs

Form Factor 1U rackmount
CPU LGA1151 socket Intel Xeon E3/ Core family processor (Skylake)

Chipset Intel C236/H110

System Memory Intel C236: 4 x DDR4-2400 U-DIMM non-buffer non-ECC/ECC memory, up to 64GB

Intelй H110: 2 x DDR4-2400 U-DIMM non-buffer non-ECC/ECC memory, up to 32GB
BIOS AMI

Ethernet

Intel C236:
8 x 10/100/1000 Mbps (Intel i210)
10 x 10/100/1000 Mbps (optional)
8 x RJ-45 + 2 x SFP (optional)

Intel H110:
6 x 10/100/1000 Mbps (Intel i210)
1 x LAN module (optional), max. up to 18 LANs
LAM Bypass 2 pairs
LAN Module 1 x LAN module (optional), up to 18 LANs

Storage 2 x 2.5" SATA HDD

1 x CFast
1 x mSATA
1 x 3.5" SATA HDD (optional for 270 W ATX power supply only)
Expansion 1 x PCIe x8 (Intelй C236 only) through AX96708 (83967081010E) riser card

I/O Interface 1 x RS-232 (RJ-type)
2 x USB 3.0
8 x RJ-45 LAN ports

Power Supply 270W ATX power supply
280W 1U redundant power supply (optional)
LCM Module Yes

Operating Temperature 0 C ~ +45 C (+32 F ~ +113 F) (270 W ATX power supply)
0 C ~ +40 C (+32 F ~ 104 F) (280 W 1U redundant power supply)

Dimensions
(W x D x H) 44 x 430 x 450 mm (1.73" x 16.93" x 17.7")
Weight (net/gross) 8.5 kg (18.74 lb)/9.8 kg (21.61 lb)

OS Linux Kernel

Certifications FCC class A
CE class A
