NA-560 Сетевая платформа 1U 19" c 6/8 гигабитными портами, LGA1155 Intel Xeon E3 /3rd-2nd gen Core , чипсет Intel B65/H61, Linux

Информационный листок (англ.), PDF

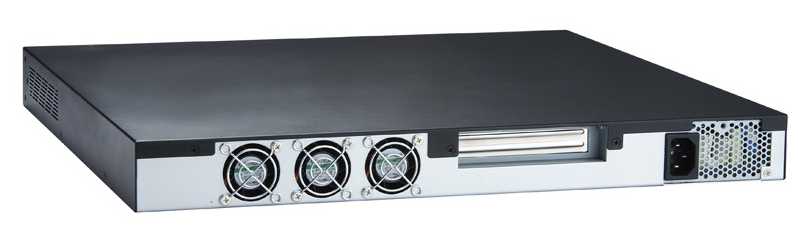

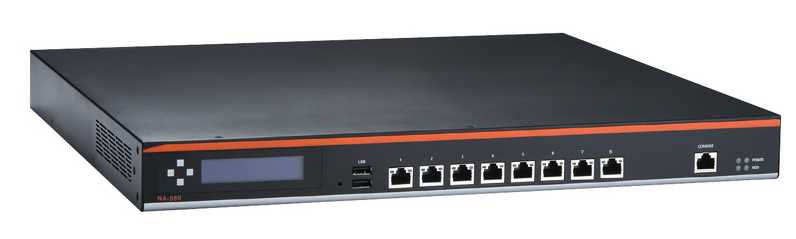

NA-560
1U Rackmount Network Appliance Platform with LGA1155 Socket Intel Core Family Processor, Intel H61/B65 and up to 8 LANs

Form Factor 1U rackmount

CPU LGA1155 socket Intel Xeon E3 / 3rd & 2nd generation Intel Core family processors
Chipset Intel B65/H61

System Memory
Intel B65: 4 x DDR3-1333 U-DIMM non-buffer non-ECC memory, up to 32GB
Intel H61: 2 x DDR3-1333 U-DIMM non-buffer non-ECC memory, up to 16GB

BIOS AMI

Ethernet
Intel B65 PCH: 8 x 10/100/1000 Mbps (Intel 82574L)
Intel H61 PCH: 6 x 10/100/1000 Mbps (Intel 82574L)
LAM Bypass 2 pairs
LAN Module N/A

Storage 2 x 2.5" SATA HDD
1 x CompactFlashT type-II
1 x 3.5" SATA HDD (optional)
1 x CFastT (optional)

Expansion 1 x PCI Express Mini Card
1 x PCIe x8 (optional)
I/O Interface 1 x RS-232 (RJ-type)
2 x USB 2.0

6 x RJ-45 (Intelr H61 PCH) / 8 x RJ-45 (Intel B65 PCH)

Power Supply 270 W ATX power supply
LCM Module Yes

Operating Temperature 0C ~ +45C
Dimensions
(W x D x H) 44 x 430 x 392.26 mm (1.73" x 16.93" x 15.43")
Weight (net/gross) 8.2 kg (18.08 lb)/9.8 kg (21.61 lb)

OS Linux Kernel 2.6

Certifications FCC class A
CE class A
