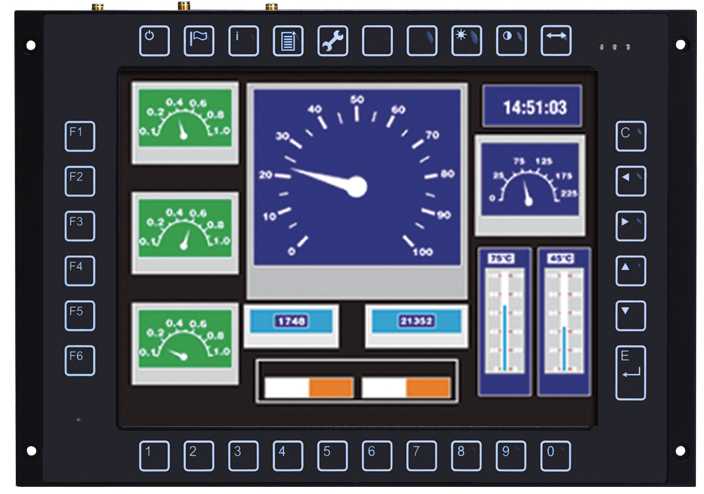

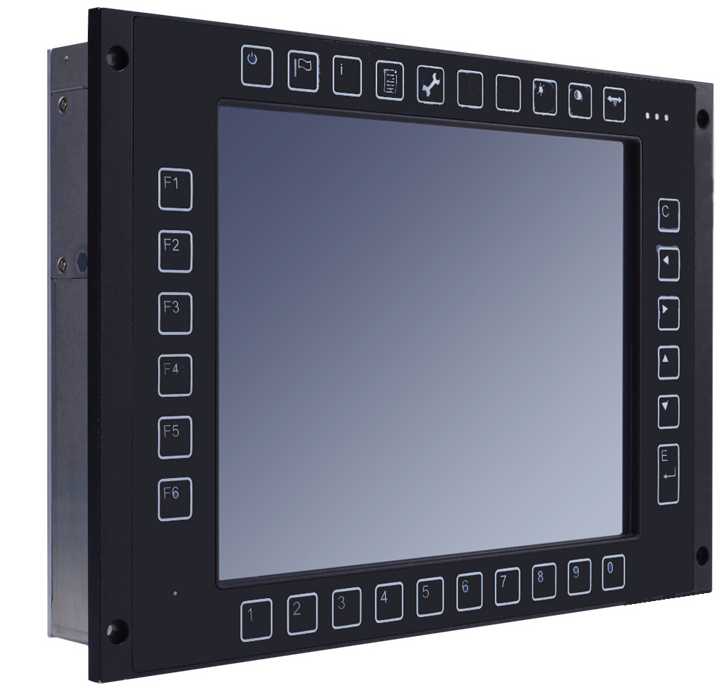

GOT710-837 - Панельный железнодорожный компьютер 10.4″ SVGA, 1000 nit, Intel Atom E3845 1.91 ГГц, IP-65, EN 50155, -25º ~ +70º C

Информационный листок (англ.), PDF

GOT710-837
10.4" SVGA TFT EN 50155 Railway Fanless Touch Panel PC with Intel Atom Processor E3845 1.91 GHz (-25 C to +70 C )

Sunlight readable 10.4" SVGA high brightness (1000 nits)
Intelr AtomT processor E3845 1.91 GHz
Alternative keypad control in the front bezel

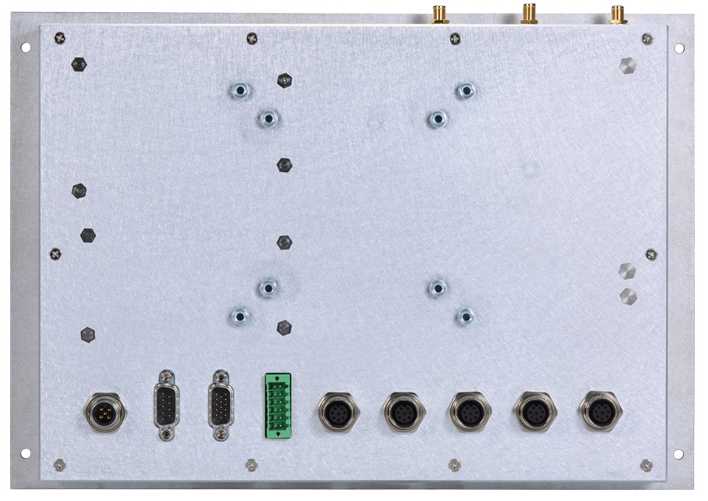

M12-type lockable connectors design
Auto-dimming for different environment
-25 C to +70 C wide temperature range (T3 Level)
EN 50155 certified for railway application

LCD Panel 10.4" SVGA TFT LCD
1000 nits
800 x 600 pixels

CPU Intel Atom processor E3845 1.91 GHz
Chipset SoC Integrated
System Memory DDR3 4 GB (default) or 8 GB memory onboard
BIOS AMI

COM 2 x isolated RS-232/422/485 (M12, A-coded)
USB 2 x USB 2.0 (M12, A-coded)
Ethernet 2 x isolated 10/100/1000Mbps (M12, X-coded)
Display N/A
Audio Line out/Line in/speaker out

Storage 16GB flash onboard
1 x mSATA

Expansion 2 x PCI Express Mini Card

Others 1 x isolated CAN bus
1 x isolated DIO (6-IN/2OUT) (phoenix type)
1 x isolated DC for power input (M12, A-coded)

Touchscreen 5-wire resistive touch panel

Front Bezel IP65, NEMA 4 rugged protection, aluminum front bezel
Power Supply 16.8V to 30V DC or 77V to 137.5 VDC
10ms hold up time (S2)
Power Comsumption 36W
Watchdog Timer 255 levels, 1 ~ 255 sec.
Operating Temperature -25 C ~ +70 C (-13 F ~ +158 F)
Relative Humidity 10% ~ 95% @ 40шC, non-condensing
Vibration N/A
Dimensions (W x D x H)
Weight (net/gross) 2.4 kg (5.29 lb) / 5 kg (11.02 lb)
Certification EN 50155, EN 50121-3-2 EMC, EN 61373 (Shock/Vibration), EN 45545 (fire) certified
Compliance with UIC 612-01 (keypad)
EOS Windowsr 10, Windowsr 8/8.1, WES 8, Windowsr 7, WES 7
Mounting Suspension mount
VESA mount
