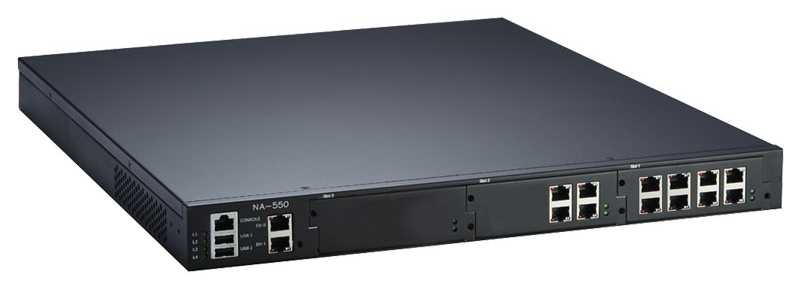

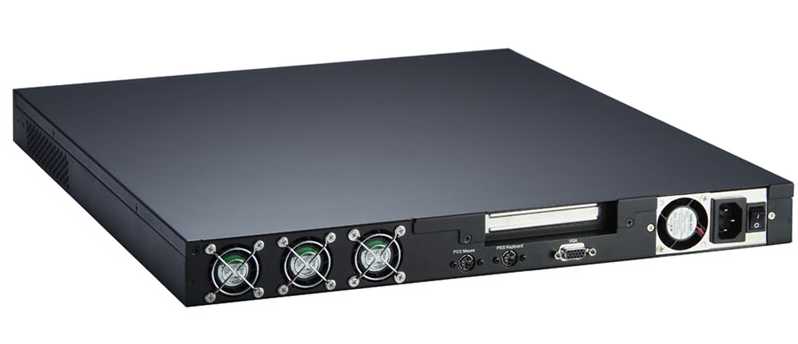

NA-550 Сетевая платформа 1U 19" c 14-26 гигабитными портами на базе LGA1155 3rd/2nd gen Intel Xeon E3, чипсет Intel C216, Linux

Информационный листок (англ.), PDF

NA-550

1U Rackmount Network Appliance Platform with LGA1155 Socket Intel Xeon E3 Processors, Intel C216 and up to 26 LANs

Form Factor 1U rackmount
CPU LGA1155 socket 3rd/2nd Generation Intel Xeon E3 family processors
Chipset Intelr C216
System Memory 4 x DIMM DDR3-1333 up to 32 GB non-buffer non-ECC/ECC memory
BIOS AMI
Ethernet 14 x 10/100/1000 Mbps
3 x LAN modules (for optional) up to 26 LAN ports
LAM Bypass LAN bypass function through latch relay (depends on LAN modules)
LAN Module 3 slots
Storage 1 x 2.5" SATA HDD
1 x CFastT
Expansion 1 x MiniPCI (32-bit/33 MHz)
I/O Interface 1 x RS-232 (RJ-type)
2 x USB 2.0
14 x RJ-45
1 x VGA
1 x PS/2 keyboard/mouse
Power Supply 300W ATX
LCM Module N/A
Operating Temperature 0 C ~ +40 C
Dimensions
(W x D x H) 44 x 427.8 x 523 mm (1.73" x 16.84" x 20.59")
Weight (net/gross) 8.32 kg (18.34 lb)/12.76 kg (28.13 lb)
OS Linux Kernel
Certifications FCC class A
CE class A
