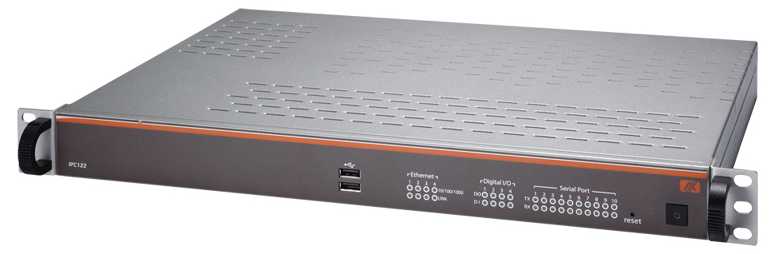

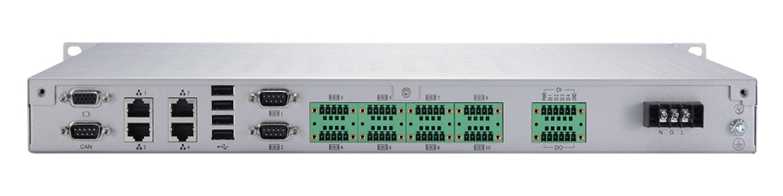

AX6156LE - Компьютер 1U 19", Intel Atom N2800 1.86 ГГц, чипсет Intel NM10, 8 изолированных RS-232/422/485 + 2 RS-232

Информационный листок (англ.), PDF

IPC122-833-FL
IEC 61850-3/IEEE 1613 certified 1U Rack-mount Fanless Embedded Computer with Intelо Atom Processor N2800, Isolated LAN, Isolated COM, CAN Bus and DIO

CPU Intel Atom processor N2800 1.86 GHz onboard
Chipset Intel NM10
System Memory 1 x 204-pin SO-DIMM DDR3-800/1066, up to 4 GB
BIOS AMI
COM 2 x RS-232
8 x isolated RS-232/422/485
USB 4 x USB 2.0
Ethernet 4 x isolated 10/100/1000 Mbps
Display 1 x VGA
Digital I/O 1 x isolated DI/DO (4-IN/4-OUT)
Audio N/A
Storage 1 x 2.5" SATA HDD
1 x onboard CFast
Expansion N/A
Others 1 x isolated CAN Bus
Power Supply AC: 100-240 VAC, 2.5A, 50/60Hz
DC: 134-370 VDC, 2.5A
Construction Heavy-duty cold-rolled steel, IP30
Operating Temperature -10_C ~ +55_C (14_F ~ 131_F) (with W.T. HDD)
Relative Humidity 10% ~ 90%, non-condensing
Dimensions
(W x D x H) 427 x 301 x 44 mm (16.81" x 11.85" x 1.73")
Weight (net/gross) 5.02 kg (11.07 lb)/ 6.02 kg (13.27 lb)
Certification IEC 61850-3, IEEE 1613, CE
