NA-552 Сетевая платформа 1U 19" c 18-26 гигабитными портами, LGA1155 Intel Xeon E3 / 3rd-2nd gen Core, чипсет Intel C216, Linux

Информационный листок (англ.), PDF

NA552

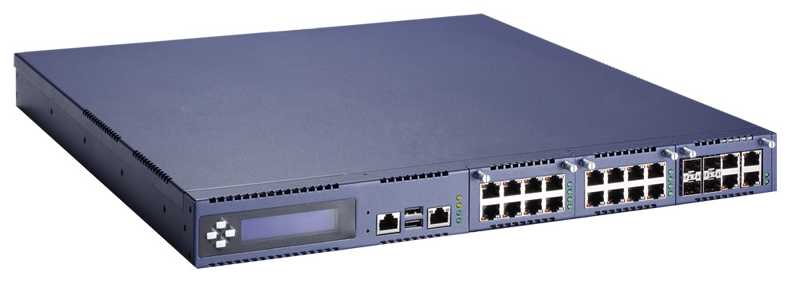

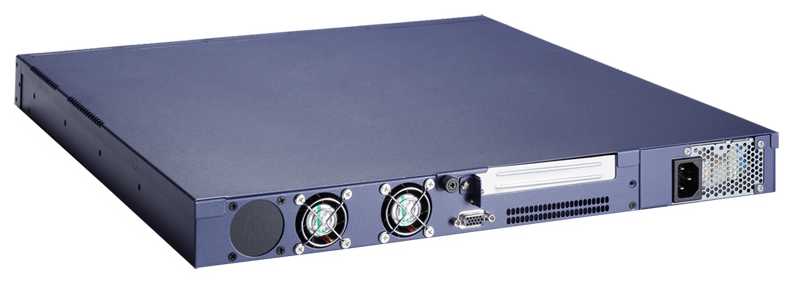

1U Rackmount Network Appliance Platform LGA1155 Socket Intel Xeon E3 / Core Family Processor, Intel C216 and up to 26 LANs

Form Factor 1U rackmount

CPU LGA1155 socket Intel Xeonо E3/ 3rd & 2nd generation Core family processor

Chipset Intel C216
System Memory 4 x DIMM DDR3-1333 non-buffer non-ECC/ECC memory, up to 32 GB
BIOS AMI
Ethernet 18 x 10/100/1000 Mbps (Intelо i210AT/82580EB)
3 x LAN modules (optional), max. up to 26 LANs
LAM Bypass Depends on LAN modules
LAN Module 3 x LAN modules (optional), max. up to 26 LANs
Storage 2 x 2.5 SATA HDD
1 x CFast
1 x 3.5 SATA HDD (optional)
1 x Compact Flash (optional)
Expansion 1 x PCIe x4 (optional)
I/O Interface 1 x RS-232 (RJ-type)
2 x USB 2.0
18 x RJ-45
Power Supply 270
power supply
280 W 1U redundant power supply (optional)
LCM Module Yes

Operating Temperature 0_C ~ +45_C (+32_F ~ +113_F)
Dimensions
(W x D x H) 44 x 430 x 450 mm
Weight (net/gross) 8.32 kg (18.34 lb)/12.76 kg (28.13 lb)

OS Linux Kernel
Certifications FCC class A
CE class A
