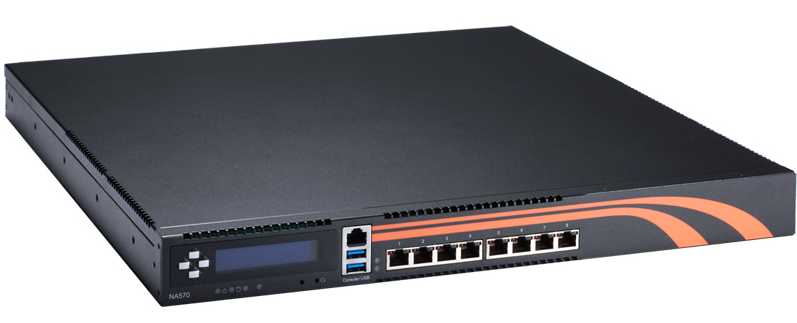

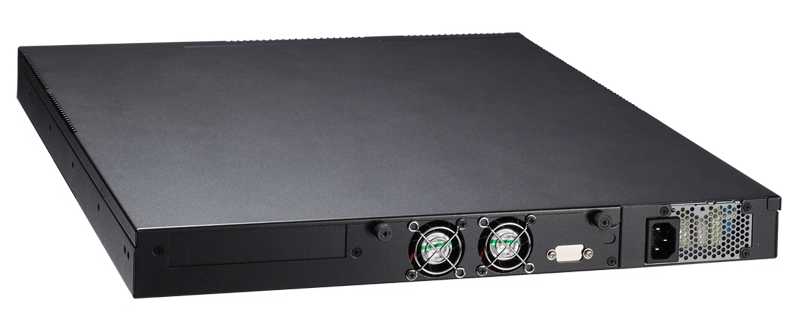

NA570L Сетевая платформа 1U 19" c 8-16 гигабитными портами на базе 4th gen Intel Core, чипсет Intel H81, Linux

Информационный листок (англ.), PDF

NA570/NA570L

1U Rackmount Network Appliance Platform with LGA1150 Socket Intel Xeon E3/Core Family Processor, IntelC226 and up to 24 LANs

Form Factor 1U rackmount

CPU NA570: Intel Xeon E3-1275 v3, E3-1225 v3 (Haswell)

NA570L: 4th generation Intel Core family processor

Chipset NA570: Intel C226

NA570L: Intel H81

System Memory

Intel C226: 4 x U-DIMM DDR3-1600 non-buffer non-ECC/ECC memory, up to 32GB
Intel H81: 2 x U-DIMM DDR3-1600 non-buffer non-ECC/ECC memory, up to 16GB
BIOS AMI

Ethernet

NA570: 8 x 10/100/1000 Mbps (Intelr i210AT)
2 x LAN modules (optional), max. up to 24 LAN ports

NA570L: 8 x 10/100/1000 Mbps (Intelr i210AT)
1 x LAN module (optional), max. up to 16 LAN ports
LAM Bypass 2 pairs
LAN Module NA570: 2 x LAN modules (optional), max. up to 24 LAN ports

NA570L: 1 x LAN module (optional), max. up to 16 LAN ports

Storage 2 x 2.5" SATA HDD
1 x CompactFlash type-II
1 x 3.5" SATA HDD (optional)
Expansion 1 x PCIe x8 (optional by NA570) through AX96708 (83967081000E) riser card
I/O Interface 1 x RS-232 (RJ-type)
2 x USB 3.0
8 x RJ-45

Power Supply 270 W ATX power supply
200 W 1U redundant power supply (optional)
LCM Module Yes

Operating Temperature 0 C ~ +45 C (+32 F ~ +113 F) (270W ATX power supply)
0C ~ +40 C (+32 F ~ 104 F) (200W 1U redundant power supply)

Dimensions(W x D x H)

NA570: 44 x 430 x 450 mm (1.73" x 16.93" x17.7")
NA570L: 44 x 430 x 392 mm (1.73" x 16.93" x 15.43")
Weight (net/gross) 8.5 kg (18.74 lb)/ 9.8 kg (21.61 lb)

OS Linux Kernel

Certifications FCC class A
CE class A
