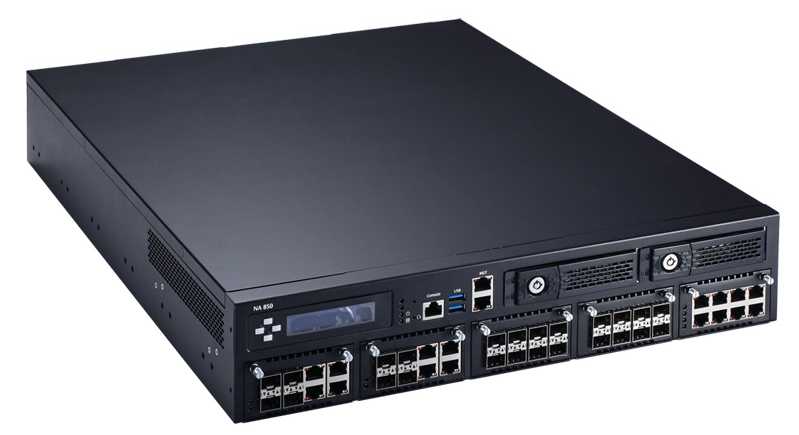

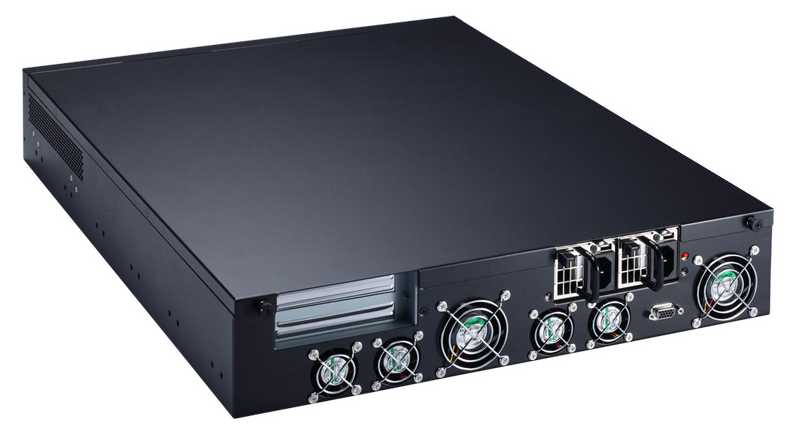

NA-850 Сетевая платформа 2U 19", до 42/26 гигабитных портов, 2 / 1 x LGA2011 Intel Xeon E5-2600 v3/v4, чипсет Intel C612, Linux

Информационный листок (англ.), PDF

NA850
2U Rackmount Network Appliance Platform with Dual LGA2011 Socket Intel Xeon E5-2600 v3 Family Processor, Intel C612 and up to 42 LANs

Form Factor 2U rackmount

CPU Dual LGA2011 socket Intel Xeon E5-2600 v3/v4 family processors
Chipset Intelо C612

System Memory 16 x R-DIMM DDR4-2133 non-buffer non-ECC/ECC memory, up to 512 GB

BIOS AMI

Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel i211)

Single CPU: 3 x LAN modules (optional), max. up to 26 LANs

Dual CPU: 5 x LAN modules (optional), max. up to 42 LANs
LAM Bypass LAN bypass function through latch relay (depends on LAN modules)
LAN Module Single CPU: 3 x LAN modules (optional), max. up to 26 LANs

Dual CPU: 5 x LAN modules (optional), max. up to 42 LANs

Storage 2 x 3.5" SATA HDD hot swappable
1 x CompactFlash
1 x CFast (optional)

Expansion 2 x PCIe x16

I/O Interface 1 x RS-232 (RJ-type)
2 x USB 3.0
2 x RJ-45
1 x VGA

Power Supply 650W 2U redundant power supply
LCM Module Yes

Operating Temperature 0_C ~ +45_C (+32_F ~ +113_F)

Dimensions
(W x D x H) 88 x 430 x 550 mm (3.46" x 16.92 x 21.65")
Weight (net/gross) 8.32 kg (18.34 lb)/12.76 kg (28.13 lb)

OS Linux Kernel

Certifications
