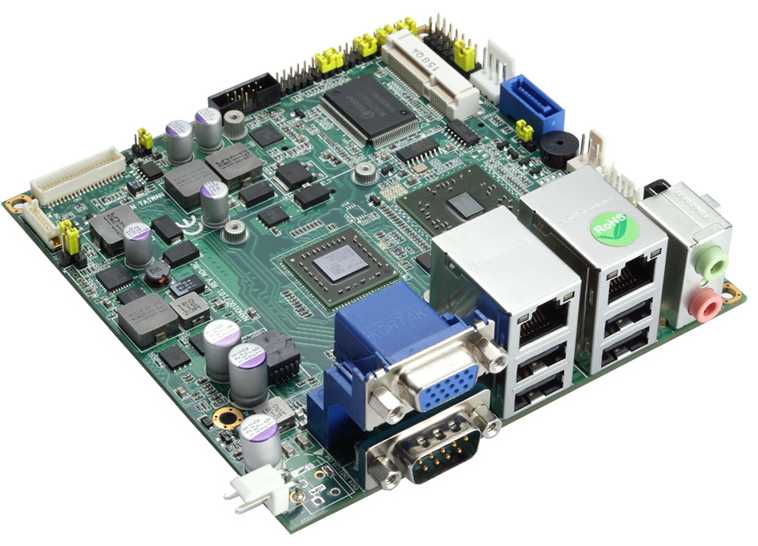

NANO101 - Одноплатный компьютер Nano-ITX, AMD G-Series, LVDS/ VGA, 2xLAN, Audio

Информационный листок (англ.), PDF

NANO101
Nano-ITX SBC with AMD G-Series APU, AMD A50M FCH, LVDS/VGA, Dual LANs and Audio

CPU AMD G-Series APU T40R 1.0 GHz single core or T40E 1.0 GHz dual core onboard
Chipset AMD A50M FCH
System Memory 1 x 204-pin SO-DIMM DDR3-1066, up to 4 GB
BIOS AMI
COM 1 x RS-232/422/485 with +5V/+12V powered
1 x RS-232 with +5V/+12V powered
USB 6 x USB 2.0
Ethernet 2 x 10/100/1000Mbps (Realtek RTL8111E)
Display 1 x VGA
1 x LVDS
Digital I/O 8-IN/OUT
Audio MIC-in/Line-out
Storage 1 x CFastЩ
1 x SATA-600
Expansion 1 x PCI Express Mini Card V1.2
Others SMbus
Battery Lithium 3V/220mAH
Power Input DC power jack connector
+12V DC-in only
AT Auto Power ON function supported
Power Requirements AMD G-Series APU T40E @1.0 GHz, 1GB DDR3
Max. RMS: +12V @ 1.11A
AMD G-Series APU T40R @1.0 GHz, 1GB DDR3
Max. RMS: +12V @ 1.06A
Hardware Monitoring Yes
Watchdog Timer 255 levels, 1~255 sec.
Operating Temperature 0_C ~ +60_C (32_F ~ 140_F)
Relative Humidity 10% ~ 95% relative humidity, non-condensing
Dimensions 120 x 120 mm
Board Thickness 1.6 mm
Certification CE
