Em104-i423 Одноплатный компьютер PC/104 на базе Vortex86SX x86 Embedded SoC, -20 ~ 70°C

Информационный листок (англ.), PDF

Руководство (англ.), PDF

Em104-i423

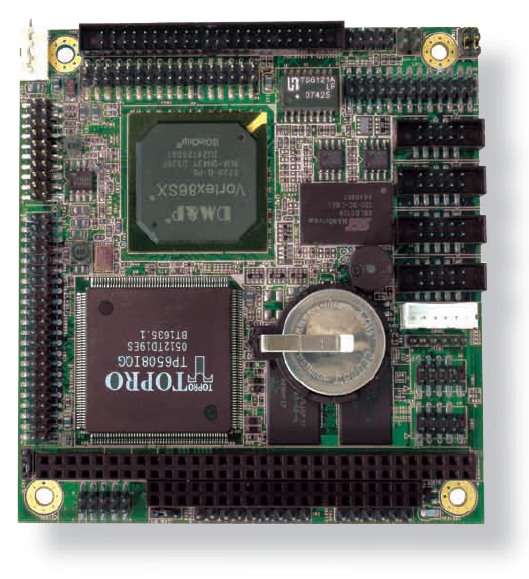

Vortex86SX x86 Embedded SoC PC/104 CPU Module

System

CPU/Chipset DMP Vortex86SX 300MHz x86 Embedded SoC
Memory Soldered onboard 128MB DDR2 SDRAM
BIOS AMI PnP Flash BIOS
Storage 1 x Ultra ATA, support 2 IDE devices
1 x CompactFlash Type II Socket
Soldered onboard 128MB NANDrive
Flopy 1 x Floppy disk drive
Watchdog Timer 1~127 levels reset

I/O Interface

Serial Port 4 x COM ports (COM3, COM4: RS-232) (COM1, COM2: RS-232/485 selectable)
Parallel Port SPP/EPP/ECP mode
USB Port 4 x USB 2.0 ports
Expansion Bus PC/104 interface
KB/MS One 1 x 6-pin wafer connector (PS/2 interface for Keyboard and Mouse)
Digital I/O 16-bit programmable Digital Input/Output

Ethernet
Chipset 1 x 10/100Base-T Ethernet controller

Display
Graphics Chipset Topro TP6508, onboard 512KB VRAM
Graphics Interface Analog RGB support 640 x 480
LCD: TTL for TFT/DSTN/EL support up to 800 x 600

Mechanical & Environmental

Power Requirement Small 4P AT power connector
Power Consumption 0.93A/5V
Operating Temp. -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity 0 ~ 95% (non-condensing)
Dimension (L x W) 96 x 90 mm (3.8" x 3.5")

Ordering Information

Em104-i423VL Vortex86SX PC/104 CPU module
Em104-i423DVL/128M Vortex86SX PC/104 CPU module with 128MB NANDrive

CBK-12-0423-00 Cable kit
2 x USB cables
4 x COM port cables
1 x FDD cable
1 x IDE cable
1 x LPT cable
1 x Ethernet cable
1 x VGA cable
1 x KB & MS cable
