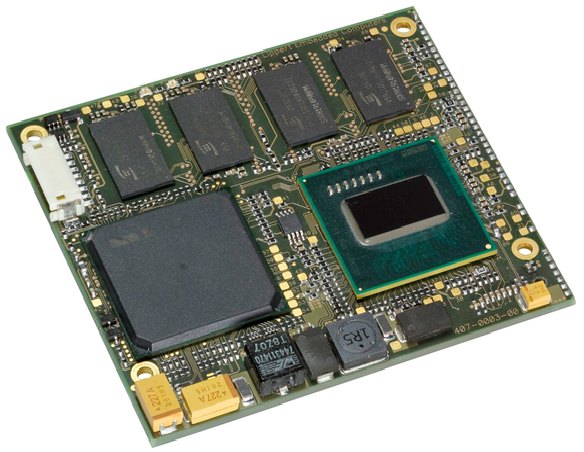

CoreExpress-ECO2. Компьютерный модуль формата CoreExpress ( 58 mm x 65 mm) на базе Atom E6XX до 1.6 ГГц ( -40°C~+ 85°C)

Недоступно для заказа

CoreExpress-ECO2: Technical Data

Board Format CoreExpress, 58mm x 65mm
Audio HDA link on CoreExpress connector Codec on carrier required

Processor
Intel Atom E6xx Processor E620T, E640T, E660T, E680T 0.6 - 1.6 GHz

PCI Epxress Bus
PCI Express bus 3 x1 lanes

Chipset Intel® Platform Controller Hub EG20T
6x USB 2.0, 1x USB client, 2x SATA
1x Gigabit MAC: RGMII
1x SDIO, 1x CAN, SPI, I2C

Power Supply +5 V only. All necessary voltages are generated on-board.

RAM 512MB, 1GB, 2GB DDR2 SDRAM, 667 / 800 MHz

Graphics
Integrated Graphics Engine (SDVO, LVDS), Video Engine (H.264, H.263, MPEG2, MPEG4, VC1, WMV9)
integrated memory controller,
supports 3D, DirectX and OpenGL

Power Management BIOS supports ACPI power saving modes

SDVO up to 1920 x 1280 @85 Hz
Digital Display port for ADD2 card or SDVO-DVI transmitter on carrier board
Status LED Status (Service) S3 mode
LVDS 18/24 bit single channel up to 1280 x 768 @60 Hz
Display backlight support
Watchdog Yes (LEMT)

USB
• 6 USB 2.0 host ports with boot device support
• 1 USB 2.0 client

Operating Temperature
0°C…+60°C (commercial, all versions)
-20°C…+60°C (industrial, all versions)
-40°C…+85°C (extended, optional)

Ethernet
Controller integrated in chipset
PHY on carrier required

Cooling
Passive cooling possible
Heat spreader is available

SATA 2 SATA ports

MTBF 228,412 hours @ 25°C
CAN 2.0B interface with up to 1Mbps Transceiver on carrier required
BIOS Phoenix BIOS BIOS parameters are saved in Flash
SDIO 8 bit, integrated in chipset
LEMT Yes, provides condition monitoring

Supported OS Windows, Linux
