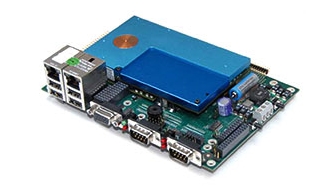

MSEP945/P Одноплатный компьютер EPIC (PCI/104-E) на базе Intel Core2 Duo, +8~18V / 25W, -20°C ~ +70°C

Производитель:
ADL Embedded Solutions Inc. (США) / Буклет PDF /

MSEP945/P - Intel CoreSolo to Core2Duo with Optional PCI/104-EXPRESS

Компьютер снят с производства

MSEP945/P Одноплатный компьютер EPIC (PCI/104-E) на базе Intel Core2 Duo, +8~18V / 25W, -20°C ~ +70°C

FEATURES
Intel® Core™Solo / Core2TMDuo
1.06 up to 1.66GHz (dependent on SmartModule)
Power Management
1x P-ATA, 2x S-ATA
CRT & LVDS on-board
6x USB 2.0 Port (+2 on PCI/104-Express)
10/100Base-T LAN-Ethernet, 1GB LAN
COM1, COM2, LPT1
RTC Battery on-board
8-18V DC In
Mini PCI Socket & Compact Flash Socket
DESCRIPTION

The MICROSPACE® EPIC single board computer has all standard PC functions plus a second LAN and an expansion bus (PC/104-Express and MiniPCI) for possible additional I/O. Interfaces are connected by means of standardized plugs so that housing integration is nearly cable-free. The cooling design depends on the choice of processor and its thermal requirements. The wide range power supply saves possible power supply costs.

Ordering InformationItem Codes Part# Description

Base
MSEP945 804070 Board without PCI/104-Express
MSEP945P 804074 Board with PCI/104-Express

Memory
DDR2-DRAM512-6SM 996925 DDR2 RAM 512MB, 200 PIN 667MHz
DDR2 -DRAM1024-6SM 996025 DDR2 RAM 1024MB, 200 PIN 667MHz
DDR2-DRAM2048-6SM 996125 DDR2 RAM 2048MB, 200 PIN 667MHz
DDR2-DRAM512-EX 996927 DDR2 RAM 512MB, 667MHz, -40°C to +85°C
DDR2-DRAM1024-EX 996027 DDR2 RAM 1GB, 667MHz, -40°C to +85°C
DDR2-DRAM2048-EX 996127 DDR2 RAM 2GB, 667MHz, -40°C to +85°C

Options
MSEP945 Cooler Passive 804032 Heat sink
MSEP945 Cooler Active 804033 Heat sink and fan
MSEP945-CK 802251 Cable kit
MSEP945CONM 804009 Multimedia Board Con: DVI Stereo I/O Mic. for stacking on MSEP945

Opt. MSEP8xx CONI 804012 COM3/4, LPT1, PS2 added

MSEP8xxPWR 804014 DC filtered Power in board
MSEP-RS422 804020 Optional RS422 1 Channel with 804012
MSEP-RS485 804021 OptionalRS485 1 Channel with 804012

Smartmodules (required to function)
SMX945-L7400 805352 Intel CORE2 duo L7400 (2x) 1.5GHz, 2048k L2 cache
SMX945-L2400 805350 Intel Core Duo L2400 (2x) 1.6GHz, 2048k
SMX945B-L2400 805450 Intel Core Duo L2400, 1GB DRAM + 1 SODIMM
SMX945B-L7400 805452 Intel Core2 Duo L7400, 1GB DRAM + 1 SODIMM
SMX945B-N270 805472 Intel Atom N270 + 1GB DRAM
