Hurricane-PM. Производительный одноплатный компьютер EPIC (PC/104+) на базе процессора Intel Pentium M до 1.8 ГГц , -40~+85

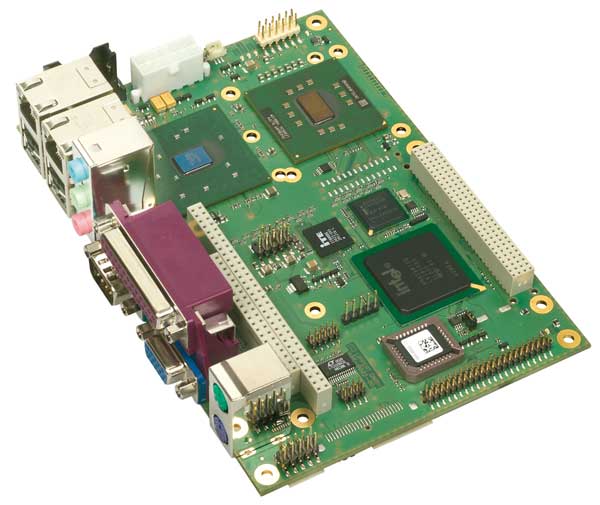

Hurricane-PM EPIC SBC - Pentium® M

The Hurricane-PM is a high-performance EPIC formatted single-board computer using Intel’s Pentium® M processor for portable computers. This processor is has very low power requirements and is therefore very well suited for embedded applications. The board combines all peripherals needed to build an embedded PC on a small 115 mm x 165 mm (4.5” x 6.5”) printed circuit board. The Hurricane-PM combines the Pentium® M with the 855GME northbridge and an ICH4 hub.These devices incorporate already most of the standard PC peripherials.
System expansion is easily done using the PC/104 and PC/104-Plus connectors and adding suitable specialized I/O modules. The Hurricane-PM is powered by a micro ATX supply and supports ACPI, advanced power management and PCI power management.

The Hurricane-PM runs Windows, Linux and VxWorks operating systems.

Hurricane-PM: Technical Data
Board Format EPIC, 115 mm x 165 mm (4.5” x 6.5”)
Processor Pentium® M: 1.4 GHz, 1.8 GHz
Celeron® M: 1.0 GHz
Speed 1.0 / 1.4 / 1.8 GHz
Core logic 82855GME
ICH4
RAM (max.) 1 GB DDR333-SODIMM
RAM clock 333 MHz
Graphics Integrated in 855GME
up to 64 MB video memory
CRT Analog VGA
2048 x 1536 pixel at 75 Hz max
LVDS Dual channel, 24 bits
1600 x 1200 pixel at 60 Hz max.
USB 6 x USB 2.0 (4 on I/O panel)
Ethernet 100/10MBit using i82562
100/10MBit using i82551
Serial 2 x RS232/RS422/RS485
LPT Parallel printer port
IDE 1 x Ultra ATA100 (ATA6) port
uDOC 10 pin header for USB 2.0 Flash Drives, shared with USB4/5

Sound I/O AC97: Line-in, Line-out, Mic-in
Watchdog yes
Status LED HDD, power, live, standby
Operating
temperature -20°C … +60°C (standard)
-40°C … +85°C (optional
ISA Bus PC/104
PCI Bus PC/104-Plus
LPC Bus Available
Power Supply 5 V +/-5 %
10 pin mini-ATX power connector
All necessary voltages are generated on-board
Power Consumption 1.0 GHz: ~20 W
1.4 GHz: ~25 W
1.8 GHz: ~35 W
Cooling Depending on processor speed and temperature range
MTBF >100.000 h (t.b.d.)
BIOS Phoenix FirstBIOS
Parameters are saved in FPROM, BIOS parameters are also saved in FEPROM
Supported OS Windows XP, XP Embedded, Windows CE, Linux, VxWorks
