EP100 - Одноплатный компьютер формата EPIC, AMD G-Series APU T40R 1.0 GHz / T56N 1.65 GHz

Информационный листок (англ.), PDF

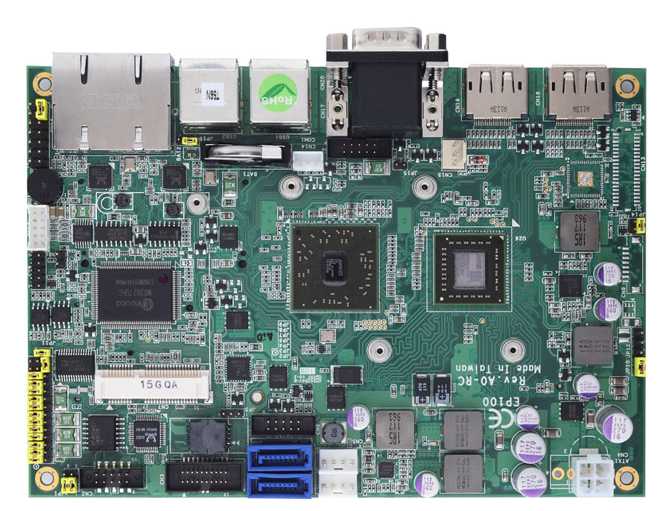

EP100
EPIC SBC with AMD G-Series APU, AMD A50M FCH, Dual DisplayPort/VGA/LVDS, Dual LANs and Audio

CPU AMD G-Series APU T40R 1.0 GHz single core or T56N 1.65 GHz dual core onboard
Chipset AMD A50M FCH
System Memory 1 x 204-pin SO-DIMM DDR3-1066/1333, up to 4 GB
BIOS AMI
COM 1 x RS-232/422/485 with +5V/+12V powered
3 x RS-232 with +5V/+12V powered
USB 6 x USB 2.0
Ethernet 2 x 10/100/1000Mbps (Realtek RTL8111E)
Display 1 x VGA + 2 x DisplayPort
1 x VGA + 1 x DisplayPort + 1 x LVDS
Digital I/O 8-IN/8-OUT
Storage 1 x CFast
2 x SATA-600
Audio MIC-in/Line-in/Line-out/Speaker-out
Expansion 1 x PCI Express Mini Card
1 x PCI Express Mini Card with SIM slot
Others SMbus
Battery Lithium 3V/220mAH
Power Input 2 x 2-pin connector
+12V DC-in only
AT Auto Power ON function supported
Power Requirements AMD G-Series APU T56N @1.65 GHz, 1 GB DDR3
Max. RMS: +12V @ 1.74A
AMD G-Series APU T40R @ 1.0 GHz, 1 GB DDR3
Max. RMS: +12V @ 1.24A
Watchdog Timer 255 levels, 1 ~ 255 sec.
Hardware Monitoring Yes
Operating Temperature 0_ ~ +60_C (32_F ~ 140_F)
Relative Humidity 10% ~ 95% relative humidity, non-condensing
Dimensions 165 x 115 mm
Board Thickness 1.6 mm
