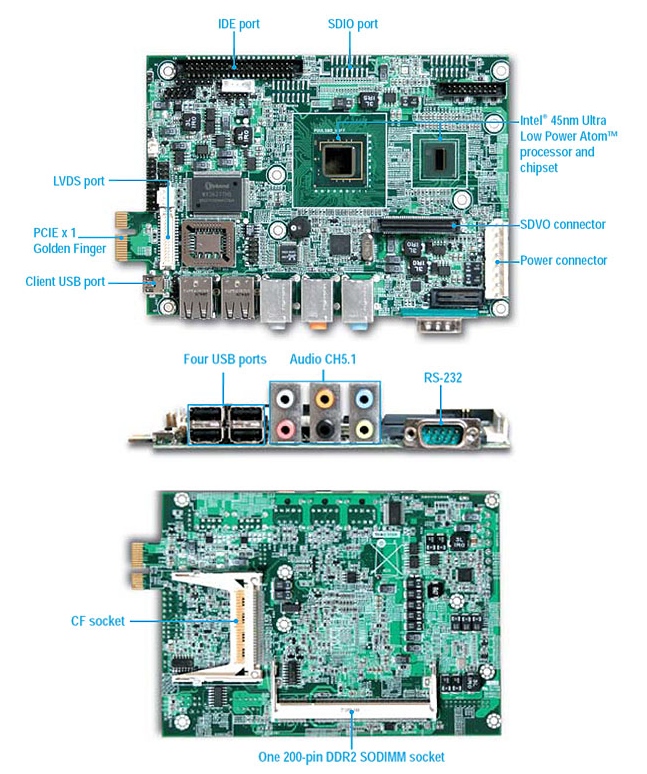

Portwell PEB-2736 - одноплатный компьютер 3.5" с низким энергопотреблением на базе Intel Atom Z510/Z530 1.1-1.6 ГГц (-40 ~+85)

Производитель:
_Portwell, Inc. (Китай)

Недоступно для заказа

Portwell PEB-2736 - одноплатный компьютер 3.5 с низким энергопотреблением на базе Intel Atom Z510 / Z530 (1.1 - 1.6 ГГц)

CPU Intel® Atom processor Z510/Z530 1.1/1.6 HHz

400/533MHz FSB

Intel® System Controller Hub US15W Chipset

System Memory One 200-pin SO-DIMM support DDR2 400/533 SDRAM up to 2GB

Storage
One CompactFlash socket and
one 44-pin IDE connector

Watchdog Timer Programmable via S/W from 1sec. to 255min.

H/W Monitor FAN Speed (System), Temperature (CPU and System), Voltage

GPIO Onboard programmable 8-bit Digital I/Os

Power Input ATX compliant power

Expansion - SDVO/PCIEx1/USB signals on one connector for daughter board

- PCI-Express x1 golden finger on board edge for optional proprietary peripheral card

COM One RS-232 port

USB Four USB 2.0 ports

Audio High definition audio CH5.1

Display-Graphic Controller Intel® System Controller Hub US15W Integrated graphics
Dual independent display: SDVO and 24bit LVDS
SDVO Connector support VGA/DVI/LVDS daughter card

Operation Temperature 0oC ~ 60oC (-40oC ~ 85oC by request)

Storage Temperature -20oC~80oC
Operating Humidity 5~95% non-condensing
Dimension 146mm x 105mm
