CAPA500 - Одноплатный компьютер 3.5" LGA1151 Socket 6th / 7th Gen Intel Core i7 / i5 / i3 , -20º ~ +70º C

Информационный листок (англ.), PDF

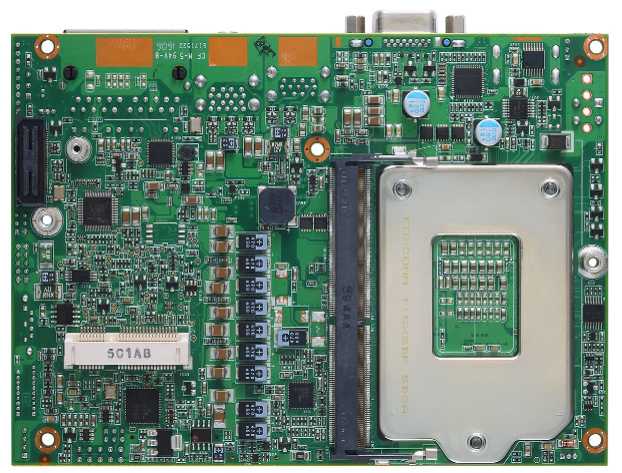

CAPA500
3.5" Embedded SBC with LGA1151 Socket 6th/7th Gen Intel Core i7/i5/i3 Processor, LVDS/ VGA/HDMI, Dual LANs and Audio

CPU LGA1151 7th/6th generation Intel Core i7/i5/i3 processor (TDP up to 35W)
Chipset Intelr H110
Intelr Q170 (optional)
System Memory 1 x 260-pin SO-DIMM DDR4-1867, up to 16GB
BIOS AMI
COM 1 x RS-232/422/485; with +5V/+12V powered
USB 3 x USB 3.0
3 x USB 2.0
Ethernet 1 x 10/100/1000 Mbps (Intelr i211AT)
1 x 10/100/1000 Mbps(Intelr i219LM)
Display 1 x VGA
1 x LVDS
1 x HDMI
Digital I/O 8 channels IN/OUT programmed
Audio MIC-in/Line-in/Line-out
Storage 1 x SATA-600
Expansion 1 x Full-size PCI Express Mini Card with mSATA supported
1 x USB, 1x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector (optional)
Others N/A
Battery Lithium 3V/220mAH
Power Input 2 x 2-pin connector
+12V DC-in only
AT Auto Power On function supported
Power Requirements TBD
Watchdog Timer 255 levels, 1 ~ 255 sec.
Hardware Monitoring Yes
Operating Temperature -20 ~ +70 C (-4 F ~ 158 F)
Relative Humidity 10% ~ 95% relative humidity, non-condensing
Dimensions 146 x 104 mm
Board Thickness 1.6 mm
Certification CE
