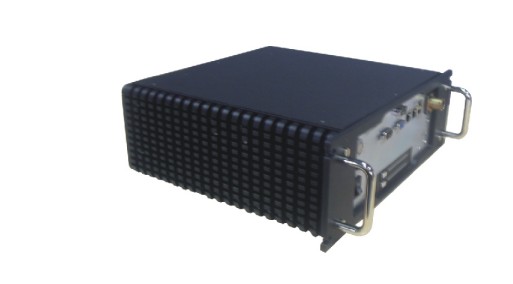

RVS-210 Компьютер для установки на транспорте на базе Intel T2300 1.6 ГГц c XPE (VGA, 2x LAN, 1×RS232, 1×RS485, +24V)

Компьютер снят с производства

RVS-210─Passenger Information System Based on Vehicle Mounted Computer
Customized vehicle mounted power supply designed according to TB T3021-2002, TB T3034-2002 and TB T3058-2002
XPE System to cope with abnormal power down
Anti-vibration design in HDD sector
Fanless design to ensure stable system operation
Pass the test of TB T3021-2002,TB T3034-2002 and TB T3058-2002 and end up with CNSA Report

This vehicle mounted computer is usually applied to tough and complicated environments, hence its stability should be guaranteed. To meet the need of such kind application environments, the design of RVS-520 puts great emphasis on solving the problems of site vibration, abnormal power down, electromagnetic interference and use method.

Specification:
Function Module Technical Parameter Remarks
Processor T2300(1.66GHz)
HDD 2x 2.5” SATA of 250GB
Memory 1× DDRII 667MHz up to 2GB
USB 3×USB
LAN Dual Gigabit Ethernet, RJ45
Serial Port 1×RS232(DB9), 1×RS485(DB9)
Display 1×VGA
RAID Unit Support RAID1 unit Anti-vibration
Operating System XPE
Power Supply DC +24V Power Input Customized vehicle mounted
Dimension 300mm×105mm×280mm(W×D×H)
Power Dissipation 150W
Operating Temperature -10~+60 Celsius
Relative Humidity 0%~95%, non-condensing
