Norco RPC-205X - Корпус 2U 19" для объединительных плат с процессорным модулем

Specification:

Physics Material high strength 1.2mm carbon structural steel, meet FCC and CE spec.
Technics surface machining of spray-paint, high temperature firing
Color Black
Physical Dimension 482mm×473mm×89.2mm(W×D×H)
Packing Dimension 580mm×530mm×200mm(W×D×H)
Gross weight kg ±0.5
Suttle kg ±0.5

Chassis Mainboard Standard industry CPU card
Backplane PBP-06V4 or PBP-06V5
I/O port Front two USB ports
Drive Bay Two 3.5" and one 5.25’’ disk driver
Cooling system Front two 8020 fans
System Control Front reset button and power switch
Notification LEDs Front: PWR, HDD
Power Supply AT/ATX(optional)
Application Industry control, desk PC, Robotization, DVVR, sever, etc.
Environment Temperature -20 +60 (-4-140F)
Humidity 5%-95%@ 40°C, (no condensing)
Shock 10 G (with 11 ms duration, half sine wave)
Vibration 1 Grms (5 ~ 500 Hz)
Acoustic Noise Less than 56 dB sound pressure at 5 ~ 28°C (41 ~ 82°F)

Power Options:Model Power Input Output
PWR-300 300W 90-240VAC 47-63 Hz +3.3V@17A ,+5V@25A ,+12V@23A ,-12V@0.5A ,+5VSB@2A

Product Number Color
RPC-205-3.03.0205119009 Black

Packing List:Name quantity Name quantity Name quantity Name quantity
Power cable 1Pcs Key 1Set Screw 1Bag Air filter 1Pcs

Motherboard Options:Model System Slots Dimension
PBP-06V4 Single 4PCI/2 PCIMG 331mm×82.2mm
PBP-06V5 Single 5PCI/1 PCIMG 290mm×80mm

1 - Power LED 2 - HDD LED 3 - Screw for Air Filter Cover 4 - Cooling Hole 5- Two USB Port
6 - Reset Button 7-5.25" Drive bay 8 - 3.5" Drive bay 9 - Locker 10 - Power Switch

1 - Power Supply 2 - Backplane 3 - HDD tray 4 - Drive Enclosure 5 - Shock-resistant Screw 6 Two 8020 FAN

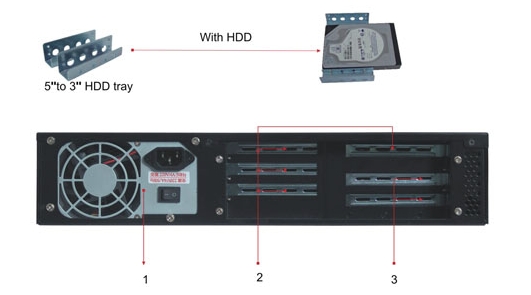

1 - Power Supply: PW-300 ATX 2 - PCI Expansion slot 3 - PICMG Expansion slot
