AX61221TM - Корпус 2U 19" ATX, 3 x slot, 2 x 3.5" SATA HDD, 1 x slim-line CD-ROM

Информационный листок (англ.), PDF

AX61221TM
2U Rackmount Chassis for ATX Motherboard

Supports 12" x 9.6" standard ATX Motherboard
Internal one 3.5" HDD drive bays
Front-accessible one 3.5", one 5.25" and one slim CD-ROM
Introduction

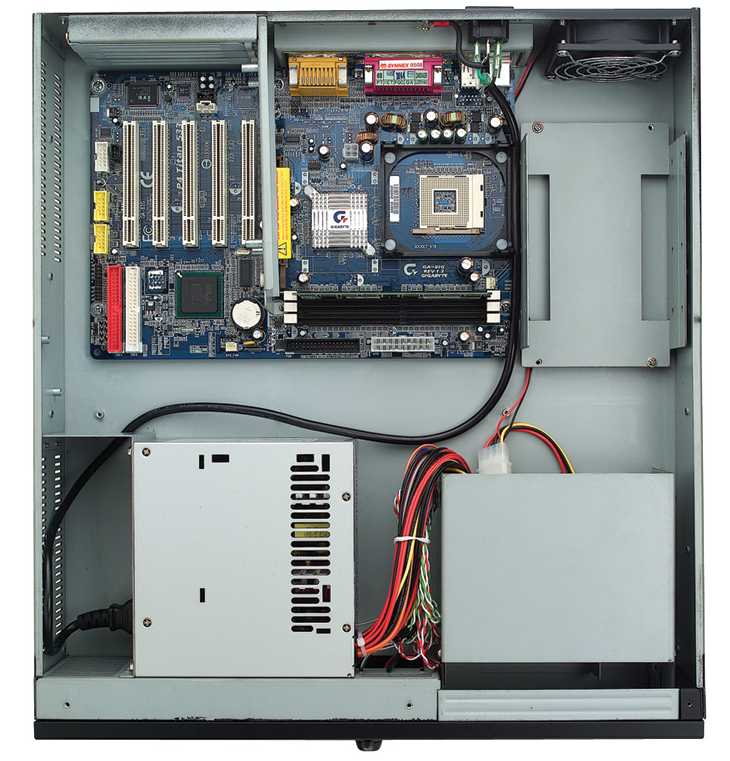

The AX61221TM is a 2U-high rackmount industrial computer chassis. The unit includes a 3-slot riser card (optional), and supports ATX Motherboard form factor. The front access I/O ports and drive bays are designed for ease access and maintenance. A wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements.

Height 2U
Expansion 3-slot
Drive Bay 2 x 3.5" HDD drive bay
1 x 5.25" HDD drive bay
Cooling System 1 x 8 cm ball-bearing fan (38.6 CFM/each)
System Board 12" x 9.6" ATX Motherbard
Backplane Options N/A
I/O Interface 2 x USB
1 x slim-line CD-ROM
Front Panel Indicators 1 x power on/off
1 x HDD
Front Panel Controls 1 x power on/off
1 x system reset
Power Supply PS/2 type
Operating Temperature 0шC ~ +40шC (+32шF ~ +104шF)
Dimensions
(W x D x H) 482.6 x 450 x 88.9 mm (19" x 17.7" x 3.5")
Weight (net/gross) 12 kg (26.45 lb)/13.5 kg (29.77 lb)
Certification CE
