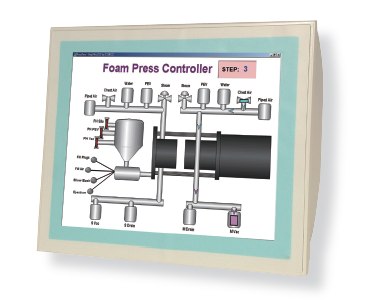

ARBOR T1561 - панельный компьютер LCD 15" с сенсорным экраном и пассивным охлаждением на базе Atom N270 (IP65, PC/104)

Soldered Onboard Intel Atom™ N270 1.6GHz CPU
15" 1024 x 768 XGA Color TFT LCD Display
Passive Cooling System (Fanless)
Super Slim and Compact Mechanical Design
S.D.R. (Smart Data Recovery) Design
Isolated Serial Ports (RS-232/422/485)/CAN-BUS
Flush Front Panel For NEMA4/IP65 Compliance
PC/104 Expansion Bus
Compatible with OPC and SCADA Application Software
Cut-out dimensions 380 x 300 mm

System
CPU Intel Atom™ N270 1.6GHz processor
Memory 1 x 200-pin SO-DIMM Socket support DDR2
400/533MHz SDRAM up to 2GB
512KB FRAM soldered onboard for S.D.R.
Chipset Intel 945GSE + ICH7M
LAN 2 x Realtek RTL8111B 10/100/1000Base-T
Watchdog Timer Programmable as 250ms, 500ms,1 second
Storage
HDD/Type 1 x 2.5" drive bay for SATA HDD/SSD
Flash Disk 1 x CompactFlash socket

LCD Display
Size/Type 15" TFT LCD
Max. Resolution 1024 x 768, XGA
Backlight Life 50,000 hours
Luminance 350 cd/m²
Max. Colors 262,144

Touch Screen
Type 8-wire, Analog resistive
Light Transparency Above 80%
Lifespan 10 million touches at single point

I/O
Serial Port 2 x Isolated RS-232 ports, 2 x Isolated RS-422/485
port (with optical isolation design of 3.75KV)
Parallel Port 1 x LPT
CAN-Bus Port 1 x CAN-Bus shared with RS-422/485 port
USB Port 2 x USB 2.0 (Host)
KB/MS 1 x PS2 Keyboard and Mouse
Expansion Bus 1 x PC/104

Power System
Connector One ME-050 3-pin DC jack for power adapter
Power Input DC 9 ~ 33V
Power Consumption 45W
Mechanical & Environmental
Operating Temp. 0 ~ 50°C (32 ~ 122ºF)
Storage Temp. -20 ~ 60°C (-4 ~ 140ºF)
Operating Humidity 10 ~ 95% RH @40°C (non-condensing)
Ingress Protection Front panel: NEMA4, IP65
Vibration Protection 1Grms (with CF or SSD)
Dimensions (W x D x H) 390 x 52.3 x 310 mm (15.35" x 2.06" x 12.2")
Weight (Net) 4.4 kg (9.7 lb)
Enclosure Aluminum (Front Panel), PC + ABS (Bezel)
Dimensions
Ordering Information
T1561-E
15" Intel Atom™ N270 ultra slim fanless touch panel
computer barebone w/o FRAM, isolated COM, CAN-BUS
and memory
T1561 T1561-E with FRAM, Isolated COM, CAN-BUS, 1GB
SDRAM
VMB-1560 T1560/T1561 VESA mount bracket kit
ARM-150 VESA-75/100 desktop LCD monitor ARM
PAC-P065W 65W AC/DC adapter kit
