BPD-9219 - Панельный TFT LCD-монитор 19″ (300 cd/m², 700:1), сенсорный экран, LED-подсветка, VGA, DVI

Недоступно для заказа

Смотрите актуальные предложения в разделе каталога "Промышленные мониторы с сенсорным экраном"

BPD-9219

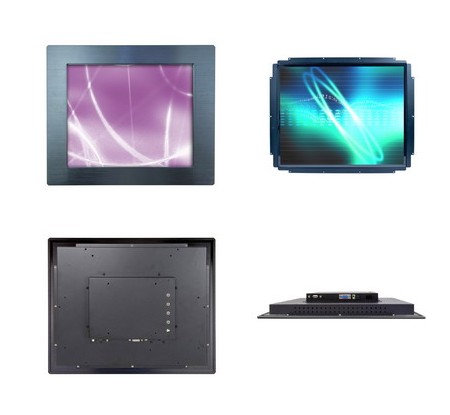

19" Panel Display Module with Touch Screen, 12V DC Adapter

LCD Technology:
Active matrix TFT color LCD
19" diagonal screen size
1280 x 1024 addressable pixels
0.294 mm x 0.294 mm pixel pitch
300 cd/m² (typ.) Brightness (LED Backlight)
700:1 (typ.) Contrast Ratio
Tr+Tf: 6ms (typ.)
L/R=70 degrees/70 degrees, U/D=70 degrees/60 degrees Viewing Angle
Display Resolution:
1280 pixels (H) x 1024 lines (V)
Touch Panel:
5-wire resistive type with USB or option RS-232 interface connector
Active Display Area:
376.3 (H) x 301.1(V) mm
Displayable Color:
16.7 millions colors
Horizontal Scan:
30kHz to 80kHz
Vertical Refresh:
50Hz to 75Hz
Pixel Frequency:
110MHz
Compatibility:
IBM & VESA VGAL 640x350, 70Hz, 640x400, 70Hz, 720x400, 70Hz, 640x480, 60Hz
VESA VGA: 640x480, 72/75Hz
VESA SVGA: 800x600, 56/60/72/75Hz
VESA XGA: 1024x768, 60/70/75Hz
VESA SXGA: 1280x1024, 60Hz
Input Signal:
Analog RGB 0.7 Vp-p
Auto-Adjustment:
Yes
I/O Connectors:
DC IN
VGA in D-SUB 15-pin DVI (option)
USB or option RS-232
User Controls:
Power On/Off Button
External Auto-Adjustment
OSD Control items: Auto Tune, Auto Contrast, Brightness, Contrast, H Position, V Position, Detail Adjust, Color Temperate, OSD Setup, Image Setting, Recall
Power Saving:
VESA DPMS standard (4 mode)
Power Consumption:
36 watt (max.), < 3 watt (stand by mode)
Agency Approval:
FCC-B, CUL, CE-B, CCC, BSMI
Environmental Operating Temperature:
5 degrees C~35 degrees C
Humidity:
80% maximum
Storage:
Temperature: -20~60 degrees C/-4~140 degrees F
Humidity: 95% maximum
Dimensions:
48.0(L) x 38.0(H) x 5.37(W) cm
Cut Out Size:
40.3(L) x 33.1(H) cm
N.W. Weight:
3.9Kg
G.W. Weight:
5.1Kg

BPD-9219
19" Panel Display Module w/Touch Screen, 12V DC Adapter
OPD-9219
19" Open Frame Panel Display Module w/Touch Screen, 12V DC Adapter
