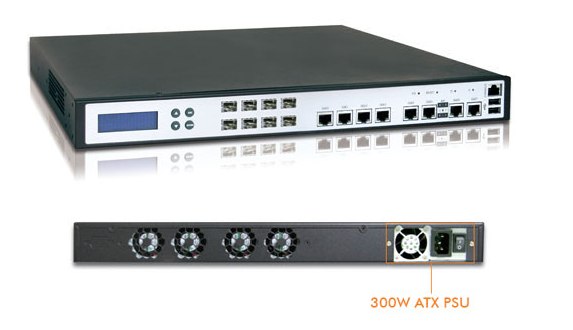

NAR-5660. Производительный сервер 1U на базе Dual/Quad core Xeon ( порты до 10 Гбит/с)

Недоступно для заказа

1U High End Single Xeon® Server with up to 8 F/O and 8 RJ45 GbE Interfaces

FEATURES
Built with Intel® server chipset 3210, supports 1333MHz and Dual Channel DDR2 800/667
Supports the latest 45nm Dual/Quad core™ Xeon® 3000 series and Core™ 2 Quad/Duo CPUs
8 GbE ports on board with three bypass segments
Up to 8GbE ports expandable with SFP or RJ45 interface
Ready for 10G solution

SPECIFICATION
CPU Board
- Built with Intel® server grade 3210 Chipset, supports 1333/ 1066MHz FSB
- Supports the latest 45 amd 65nm Dual CoreTM/Quad CoreTM Xeon® 3000 series and CoreTM 2 Duo/CoreTM 2 Quad processors in LGA775 package
System Memory
- Dual channel DDR2 with four 240-pin DIMM sockets
- Supports DDR2 800/667, ECC un-buffered memory up to 8GB

Ethernet Port
- Onboard Max. 6 PCI-E x1/x4 and two PCI32 GbE ports
- Variable I/O combinations: 8 RJ45, 2 SFP & 6 RJ45 or 4 SFP & 4 RJ45
- Up to 8 GbE ports with RJ45 or SFP expandable
- Support dual 10G ports through expansion module

Bypass feature Up to 2 Gen.-2.0* bypass segments available

Expansion Slot

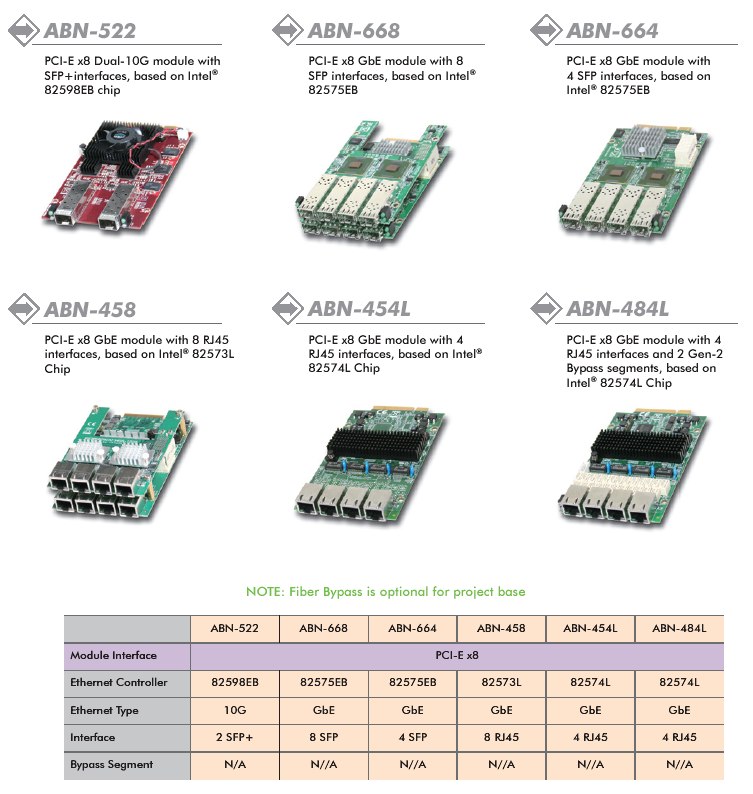

- One proprietary PCI-E x8 slot for Ethernet expansion with up to 8 RJ45/SFP GbE or dual 10G ports
- One PCI-E x8 golden finger for expansion through backplane
- One MiniPCI socket

Storage Device
- Support one 3.5" SATA HDD
- One onboard Compact Flash socket for Type-I CF

Serial Port
- One front-access RJ45 connector for system console
- One internal 2x5 pin-header for connection with EZIO or preferred device

LCD Panel 2x16 characters LCD module with 4 blue backlight and 4 buttons

LEDs Power status, data access, Ethernet status (LNK/ACT), Ethernet
speed (10/100/1000) and bypass

USB Dual USB 2.0 ports, front accessible

VGA MiniPCI module for option

Power Full-range 350W PSU

Dimension 443 (W) x 457.2 (D) x 44 (H) mm; 17.4" (W) x 18" (D) x 1.73" (H)

Operating Environment
- Temperature: 5 to 40°C (41 to 104°F)
- Humidity: 20%~90% RH
Storage Environment
- Temperature: 0 to 70°C (32 to 158°F)
- Humidity: 5%~95% RH
Certification CE/FCC/UL/cUL
