NAR-2085. Cервер 1U с 6 портами Gigabit Ethernet на базе ULV Celeron M 600 MГц / Celeron M 1.5 ГГц (1xmini-PCI, CF, IDE, DOM)

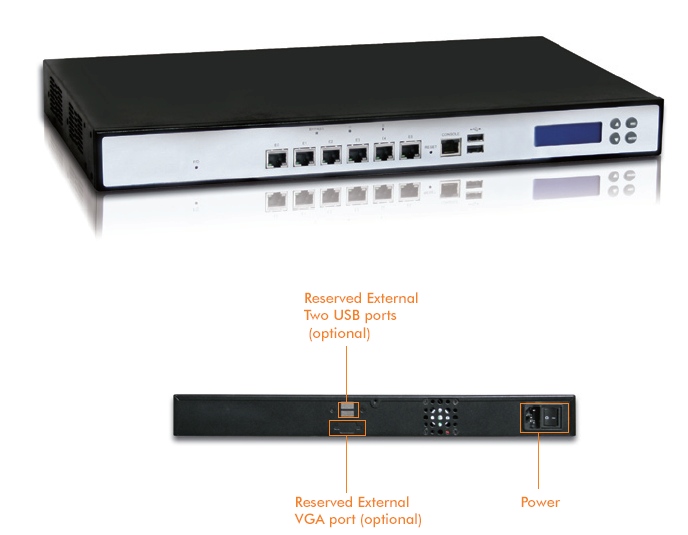

NAR-2085 1U server with up to six Gigabit/Fast Ethernet ports and Mini-PCI Slot

Компьютер снят с производства

FEATURE
- Full Intel® solution
- Cost effective system with 3.5”HDD
- High computing performance with low power consumption
- Supports CF, 40/44-pin DOM, Mini-PCI slot
- Load Factory-Default mechanism
- Gen1.5 Bypass Function

Part No. CPU Ethernet Bypass EZIO PCI Exp.
NAR-2085-661 Intel® Celeron® M 1.5GHz 6 GbE One bypass seg. N/A MiniPCI
NAR-2085-620 Intel® ULV Celeron® M 600MHz 6 FE One bypass seg. N/A MiniPCI
NAR-2085-461 Intel® Celeron® M 1.5GHz 4 GbE One bypass seg. N/A MiniPCI
NAR-2085-421 Intel® Celeron® M 1.5GHz 4 FE One bypass seg. N/A MiniPCI

SPECIFICATION

CPU Board
- Support Intel® Celeron® M processors up to 1.5GHz
- Intel® 852GM chipset with 400MHz FSB

System Memory
- Two 200-pin SODIMM sockets support DDR 266 up to
2GB

Ethernet Port
- 6x Gigabit Ethernet ports via Intel® 82541PI

PCI Expansion
- Support Mini-PCI slot
- Standard PCI slot (optional)

Storage Device
- CompactFlash
- Disk on Module (DOM)
- One IDE 2.5/3.5” HDD

Serial Port
- One RJ45 for system console
- One 2x5 pin-connector

LCD Panel Optional
LEDs Power status, data access, Ethernet status (LNK/ACT),

Ethernet speed (10/100/1000) and bypass

IDE One 40-pin and one 44-pin IDE connectors
USB Two USB 2.0 ports, front accessible
VGA Built-in on-board 2x5 pin-header
Power 65W full-range AT
Dimension 428(W) x 255(D) x 44(H)mm
16.83”(W) x 10.04”(D) x 1.73”(H)

Operating Environment
- Temperature: 5 to 40°C (41 to 104°F)
- Humidity 20% to 90%RH

Storage Environment
- Temperature: 0 to 70°C (32 to 158°F)
- Humidity 5% to 95%RH

Certification CE/FCC/UL
