CAR-3000. Cервер 1U с 6 портами Gigabit Ethernet на Intel Core 2 Quad (2 x 2.5" или 1 x 3.5" SATA HDD)

Недоступно для заказа

1U rack-mount network server supporting Core™ 2 Quad CPU with up to 6 RJ45 GbE & 8 SFP GbE interfaces

FEATURES
Cost effective Intel® Core™ 2 Quad platform
Dual-channel DDR3 1333/1066 up to 4GB with 2 slots
One 3.5" or 2.5" SATA HDD
6 GbE RJ45 ports on board with 2 bypass segments
Expandable with 8 GbE SFP or 4 GbE RJ45 interface
Ready for 10G solution

SPECIFICATION

CPU Board
- Support Intel® Core 2 Quad, Core 2 Duo in LGA775 socket
- Intel® G41 chipset with ICH7R with 1333/1066/
800 MHz FSB

System Memory
- Dual channel DDR3 with two 240-pin DIMM sockets
- Supports DDR3 1333/1066 up to 4GB

Ethernet Port
- On board 6 PCI-E x1 GbE ports

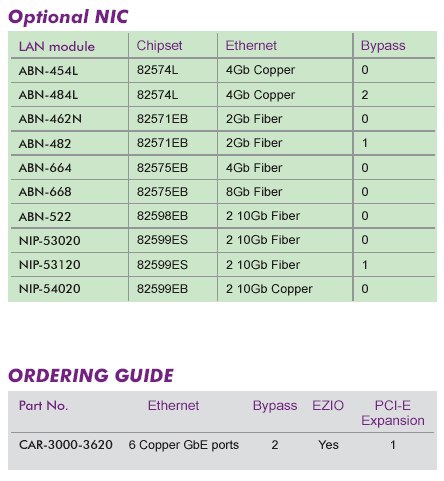

- Flexible Ethernet module options: 4 GbE RJ45 ports, 2 GbE SFP ports, 4 GbE SFP ports or 8 GbE SFP ports
Bypass Feature Up to 2 Gen.-2.0 bypass segments available

Expansion Slot One proprietary PCI-E x8 golden finger for Ethernet module options or one PCI-E x8 expansion slot available, rear access

Storage Device
- Support one 3.5” or 2.5” SATA HDD
- CF socket on-board

Serial Port
- One front-access RJ45 connector for system console
- One 2x5 pin-header for EZIO

LCD Panel Optional 2x16 characters or 128x32 graphic LCD module with 4 buttons

LEDs Power status, data access, Ethernet status (LNK/ACT),
Ethernet speed (10/100/1000) and bypass

USB Dual USB 2.0 ports, front accessible

VGA Built-in on-board 2x5 pin-header

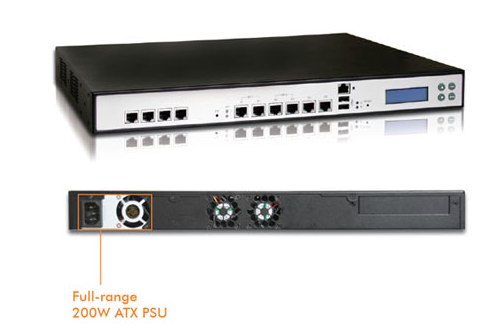

Power 100W or 200W full-range ATX

Dimension 443(W) x 292.1(D) x 44(H) mm 17.45”(W) x 11.5”(D) x 1.73”(H)

Operating Environment
- Temperature: 5 to 40°C (41 to 104°F)
- Humidity 20% to 90% RH

Storage Environment
- Temperature: 0 to 70°C (32 to 158°F)
- Humidity 5% to 95% RH

Certification CE/FCC/UL
