AXIOMTEK NA-810A / NA-810B. Сетевая платформа с 4 портами Ethernet 10/100 Mbit на базе VIA Eden C4 / C7 400-1000 МГц

Недоступно для заказа

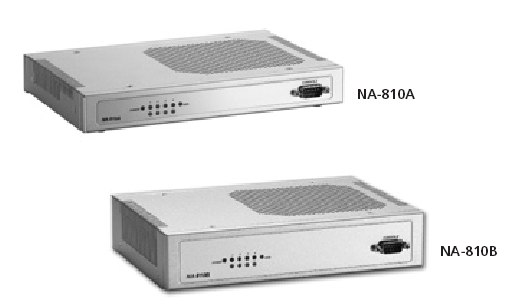

Compact Network Appliance Platform with VIA Eden V4/VIA C7 Processor and 4 LANs NA-810A/B

Features

Low power and high performance VIA Eden/C7processors
Supports 4 10/100Mbps Ethernet ports(Realtek 8100C)
Supports BIOS redirected to COM port feature
Supports one 2.5” IDE or SATA HDD
Supports both fanless and noiseless operation(for NA-810A)
Suitable for VPN, network bandwidth controller, firewall applications

Specifications

Introduction

The NA-810A and NA-810B are compact network security hardware platforms
for VPN, firewall and other network security applications. They support VIA
Eden/C7 V4 low power CPU’s and feature a compact and slim form factor. The
platforms support up to a maximum of 1GB of SODIMM DDR II memory, and for
storing event log data, the NA-810A/B feature an internal 2.5” HDD. With other
optional features such as the LAN bypass function, the NA-810A/B series can be
controlled through WDT and GPIO pin definitions without downtime. For LAN
connections, the platform has two different configurations, making it a cost
effective solution.

System
CPU Onboard low power VIA Eden V4 400 MHz or VIA C7
1 GHz processor
Chipset VIA CN700 and VIA 8237R+
Memory 1 x SODIMM DDR2 400/533 up to 1GB
BIOS Award 4Mbit PnP Flash BIOS with function of BIOS redirected to COM port

HDD 1 x 2.5” IDE HDD (for NA-810A)

Interface 1 x 2.5” IDE or SATA HDD (for NA-810B)

Network Interface 4 x 10/100Mbps Ethernet (Realtek 8100C)

SSD 1 x CompactFlash™ type-II (for NA-810B)

I/O Interface 1 x RS-232 DB9 connector, 2 x USB connector, 4 x RJ-45
connector, 1 x DC-in power jack

Watchdog Timer 255 stepping for porting
USB 2 x USB 2.0 port in the rear side, others are pin header
internally
Expansion slot 1 x 32bit/33MHz MiniPCI slot (NA-810B)

Other Features LAN bypass function (LAN1, LAN2) through WDT
(option) and GPIO pin control
Power 1 x 12V, 5A power adapter

OS Compatibility Linux Redhat Kernel 2.4 and 2.6, FreeBSD

Mechanical/ Environmental
Form Factor Slim desktop and 1U desktop
LED Power, HDD, Link/Act with transfer rate

Operating Temp. 0°C ~ 45°C (32°F ~ 113°F)
Storage Temp. -20°C ~ 70°C (-4°F ~158°F)
Humidity 10% - 95% RH, non-condensing

Chassis Material Steel

Dimensions
30mm (1.18") (H) x 210mm (8.27") (W) x 157mm (6.18")
(D) for NA-810A (including connector)
44mm (1.73") (H) x 210mm (8.27") (W) x 157mm (6.18")
(D) for NA-810B (including connector)
Wight (net/gross)
2.20 kg (4.85 lb)/2.46 kg (5.42 lb) for NA-810A
2.35 kg (5.18 lb)/2.46 kg (5.42 lb) for NA-810B
Certification FCC class B

Standard
NA-810A-S4ER-400 Compact network security appliance with VIA Eden 400 MHz CPU (w/o CPU fan) and 4 10/100Mbps
NA-810B-D4ER-1G Compact network security appliance with VIA C7 1 GHz CPU (w/ CPU fan) and 4 10/100Mbps

Optional
CK9A100 Cable kit (P/N: 88080000640E)

Packing List
1 x DC power adapter 12V/5A
1 x 44-pin IDE cable
1 x SATA cable (NA-810B)
1 x utility CD (user's manual and driver)

* Specifications and certifications are limited to optional.
** NA-810A with ULV Eden 500 MHz or ULV Eden 1.0 GHz for
fanless operation is available upon ODM/OEM request.
*** NA-810B with Eden 1.0 GHz for fanless operation is
available upon ODM/OEM request.
**** First order is suggested to include optional cable kit.
