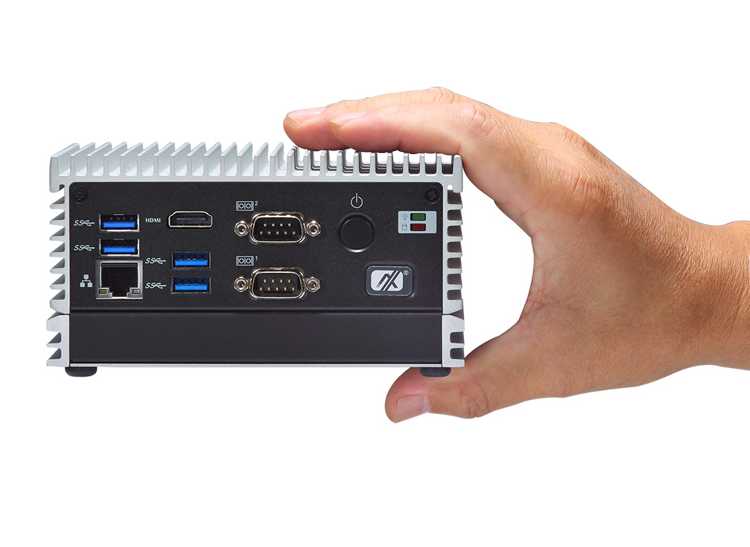

eBOX565-500-FL - Компьютер с пассивным охлаждением, Intel Core i5-6300U 2.4 GHz/ i3-6100U 2.3 GHz / Celeron 3955U 2.0 GHz

Информационный листок (англ.), PDF

eBOX565-500-FL

Fanless Embedded System with Intelо Core i5-6300U 2.4 GHz/ i3-6100U 2.3 GHz/ Celeron 3955U 2.0 GHz, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and 9~36 VD

CPU Intel Core i5-6300U 2.4 GHz/i3-6100U 2.3 GHz/ Celeronо 3955U 2.0 GHz,
Chipset SoC integrated
System Memory 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB
BIOS AMI
COM 1 x RS-232/422/485
1 x RS-232
USB 4 x USB 3.0
Ethernet 2 x 10/100/1000 Mbps (Intelо i210AT, i218)
Display 2 x HDMI
Digital I/O N/A
Audio N/A
Storage 1 x 2.5Ф SATA HDD drive bay
1 x mSATA
Expansion 1 x Full-size PCI Express Mini Card (USB + PCI Express signal)
Others 2 x SMA type connector opening for antenna
1 x AT/ATX quick switch
1 x ATX power switch
1 x Reset button
Power Supply 9-36 VDC
Watchdog Timer 255 levels, 1 ~ 255 sec.
Construction Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature -10_C ~ +50_C (14_F~+122_F) (with W.T. SSD)
Relative Humidity 10% ~ 95%, non-condensing
Vibration 3 Grms with SSD (5-500Hz, X, Y, Z directions)
Dimensions
(W x D x H) 141.6 x 106 x 73 mm (5.57" x 4.17" x 2.87")
Weight (net/gross) 1.074 kg (1.76 lb)/1.67 kg (3.68 lb)
Certification CE
EOS Support Win 10 IoT, Win 8.1, Linux
Mounting Wall mount
Din-rail
VESA mount
