AXIOMTEK eBOX830-831-FL. Промышленный компьютер c пассивным охлаждением на базе Intel Core 2 Duo до 1.5 ГГц

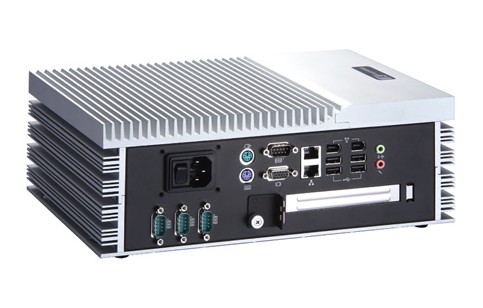

eBOX830-831-FL

Fanless Embedded System with Intel® Core™2 Duo Processor up to 1.5 GHz, Intel® 945GME+ICH7M/-DH Chipset and PCI Slot

Introduction

The eBOX830-831-FL supports superior Intel® Core™2 Duo processor. This rugged embedded system delivers system integrators and users a lot of advantages such as fanless operation, high computing power, rich expansion, and cost-effective oppositely. Considering system expansion and easy-to-upgrade, it reserved one PCI slot (or optical drive) and supported both socket type Intel® Celeron® M processor and onboard type Intel® Core™2 Duo processor. Moreover, multiple I/O features include six high-speed USB 2.0 ports, four COM ports, two Firewire (IEEE 1394a), dual Gigabit Ethernet, and audio. The eBOX830-831-FL is entirely a full-function fanless computer especially suitable for industrial automation, excellent AOI/DVR, and media display devices.

Features
Supports socket M for Intel® Core™2 Duo or Celeron® M processor up to 1.5 GHz
Intel® 945GME+ICH7M/-DH chipset
High performance with full feature I/O
Supports PCI interface or optical drive
Supports 6 USB 2.0 ports and 4 COM ports
Supports dual 10/100/1000Mbps Ethernet ports
Supports dual IEEE 1394a ports
One 2.5" SATA HDD drive bay
120W AC or DC power supply

Standard Color Silver-Black
Construction Aluminum extrusion and heavy-duty steel

System
CPU Socket M for Intel® Core™2 Duo/Celeron® M
1.5 GHz (L7400) processor
System Memory 2 x 240-pin DDR2 DIMM max. up to 4 GB (The actual max. capacity will be less depending on system configuration)
Chipset Intel® 945GME+ICH7M/-DH
BIOS Phoenix-Award 4Mbit with RPL / PXE LAN Boot ROM
SmartView and customer CMOS backup

I/O Outlet 3 x RS-232 (COM 2/3/4)
1 x RS-232/422/485 (COM 1)
1 x VGA
2 x IEEE 1394a
1 x Audio (Mic-in/Line-out)
2 x PS/2 keyboard/mouse
2 x 10/100/1000Mbps Ethernet
6 x USB 2.0
1 x VAC 100-240 power input connector

Watchdog Timer 255 levels, 1~255 sec.
Storage Supports 1 x 2.5” SATA HDD drive bay
Expansion Interface 1 x PCI slot (Supports max. length of 185 mm of PCB boards expansion)

System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
Power Supply AC90-264V, 120W power supply or 10-30V 120W DCpower supply
Operating 0°C ~ +45°C (32°F ~ +113°F) (with W.T. HDD)
Storage -20°C ~ +80°C (-4°F ~ +176°F)
Humidity 10%~90%, non-condensing
Vibration Endurance 1 Grms with HDD (5-500Hz,X,Y,Z directions)
Dimensions 300 mm (11.81") (W) x 210 mm (8.27") (D)
x 104.5 mm (4.11")(H)
Weight (net/gross) 6.3 kg (13.89 lb)/8.2 kg (18.08 lb)
Certification CE

EOS Support XPE, WinCE, Linux

Ordering Information
eBOX830-831-FL-AC
Fanless embedded system supports socket M for Intel® Celeron® M processor, PCI slot and AC power
eBOX830-831-FL-AC-CD
Fanless embedded system supports socket M for Intel® Celeron® M processor, CD-ROM and AC power
eBOX830-831-FL-1.5G-AC
Fanless embedded system with LV Intel® Core™2 Duo 1.5 GHz (L7400) processor, PCI slot and AC power
eBOX830-831-FL-1.5G-AC-CD
Fanless embedded system with LV Intel® Core™2 Duo 1.5 GHz (L7400) processor, CD-ROM and AC power
eBOX830-831-FL-DC
Fanless embedded system supports socket M for Intel® Celeron® M processor, PCI slot and DC power
eBOX830-831-FL-DC-CD
Fanless embedded system supports socket M for Intel® Celeron® M processor, CD-ROM and DC power

2.5" SATA HDD
40GB ~ 160GB

DDR2 DIMM
256MB ~ 2GB

*W.T.: Wide Temperature. All W.T. supported products have to be sorted by AXIOMTEK.
**XPE: Windows® XP Embedded

Packing List
1 x Quick manual
1 x Driver CD
1 x Screw pack
4 x Foot pad
4 x HDD anti-vibration damper
