AXIOMTEK eBOX310-830-FL. Компьютер для транспорта c пассивным охлаждением на базе Intel Core 2 Duo до 2.33 ГГц, +9~+36V

Недоступно для заказа

Fanless Embedded System with Intel® Core™2 Duo processor up to 2.33 GHz and Intel® 945GME+ICH7M Chipset for Vehicle PC eBOX310-830-FL

Features
 Supports Socket M for Intel® Core™2 Duo/Core™
Duo/Core™ Solo/Celeron® M up to 2.33 GHz
 Intel® 945GME+ICH7M chipset
 ISO-7637 Pulse1/2a/3a/3b/4/5a vehicle standard
 Wide-range vehicle power supply with ignition
control
 Fanless operation design with full feature I/O
 High performance DDR2 SODIMM max. up to 2 GB
 Supports 2 Express Mini Cards
 One 2.5" SATA drive bay and CompanctFlash™ slot

Supports 1 x CompactFlash™

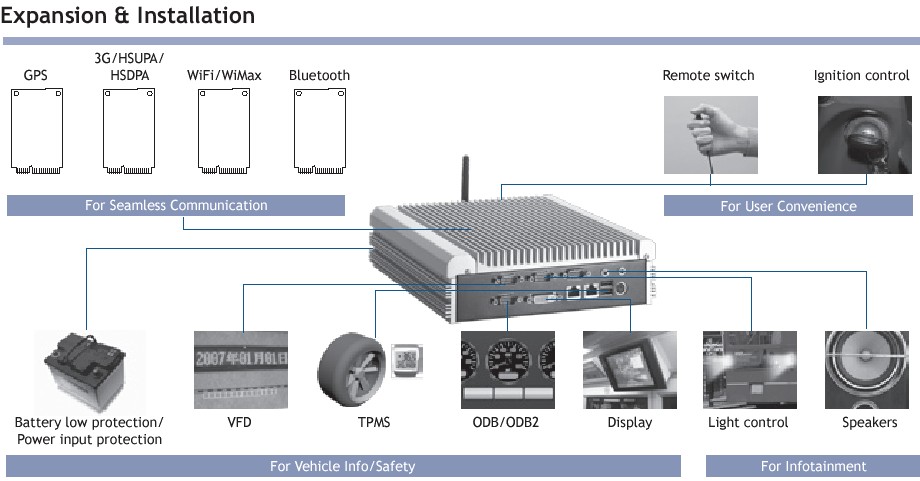

Expansion Interface 2 x Express Mini Card
System Indicator 1 x green LED for system power-on
1 x orange LED for HDD active
1 x green LED for Power status
Power Supply 9~36V DC-in ISO-7637 standard support

Operating Temperature 0°C ~ +50°C (32°F ~ 122°F) (with W.T. HDD)

Storage Temperature -20°C ~ +80°C (-4°F ~ +176°F)

Humidity 10% ~ 90% , non-condensing

Vibration Endurance 2Grms with HDD (5-500Hz, X, Y, Z directions)

Dimensions 224.1 mm (8.82") (W) x 250 mm (9.84") (D) x 66.5 mm (2.62") (H)
Weight 3 kg /3.8
Certification CE

EOS Support XPE, WinCE, Linux

Standard Color Silver-Black

Construction Aluminum extrusion and heavy-duty steel

Packing List
1 x Quick manual
1 x Driver CD
1 x Y cable for PS/2 keyboard/mouse
1 x Screw pack
4 x Foot pad
4 x HDD anti-vibration damper

Standard
eBOX310-830-FL-1.06G Fanless embedded system with ULV Intel® Celeron® M processor (423) 1.06 GHz processor
eBOX310-830-FL Fanless embedded system with socket M for Intel® Core™ Duo/Core™2 Duo/Core™ Solo/ Celeron™ M processor

Optional
2.5" HDD 40 GB~160 GB
DDR2 SODIMM 256 MB~2 GB
Wall mount kit

Ordering Information
*W.T.: Wide Temperature. All W.T. supported products have to be sorted by AXIOMTEK.
**XPE: Windows® XP Embedded
