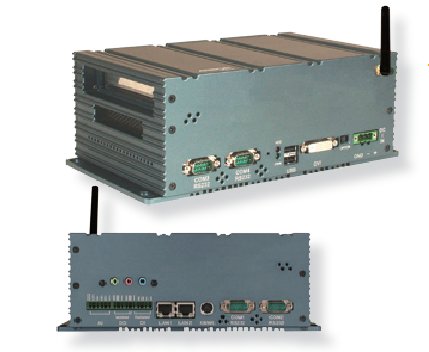

Arpex-2610. Промышленный компьютер 2U на базе Atom c восстановлением памяти, ЦАП, GPIO, 2 LAN, изол. COM, Wi-Fi, -10°C ~ + 60°C

Производитель:
ARBOR Technology Corp. (Китай)

Недоступно для заказа

Arpex-2610. Промышленный компьютер на базе Intel Atom c восстановлением содержимого памяти, Wi-Fi, -10°C ~ + 60°C

Features

2U Fanless Embedded Computing with Intel Atom™ N270 Processor, PCI, PC/104, Mini PCI,
Dual GbE LAN and DVI
Intel Atom™ N270 1.6GHz 32-bit x 86 CPU Core Onboard
Built-in Alphanumeric LCM Module
Isolated Serial Ports (RS-232/422/485)
Passive Cooling System (Fanless)
Wireless LAN Support 802.11 b/g(Optional)
Memory Back-up with Unlimited Frequency of Data Recovering
Easy Installation/Exchange of Storage Devices
2D/3D Graphic Accelerator
Support Dual Display (by Y Cable)

Power System

Connector One ME-050 3-pin DC jack for power adapter
Power Input DC 9 ~ 33V
Power Consumption 20W

Enhanced Features
Alphanumeric LCM Built-in LCM module
S.D.R. (System Data Recovery) Memory back-up for data saving after power loss
System Fast Boot Smart boot loader for system fast boot
Isolated I/O 3.75KV optical isolation for all serial ports

System
CPU Intel Atom™ N270 1.6GHz 32-bit x 86 CPU
Memory 1 x 512KB FRAM soldered onboard
1GB DDRII SDRAM SO-DIMM installed

Storage 1 x CompactFlash Socket
1 x 2.5" HDD bay

LAN 2 x Realtek RTL8111B 10/100/1000M base-T

Serial Port 2 x Full RS-232 isolated serial ports (COM1, 2) (DB9)
2 x Full RS-232/422/485 isolated serial ports
(COM3, 4)(DB9)

Parallel Port 1 x LPT port (DB25 by Y Cable)
USB Port 2 x USB 2.0 (Host)
KB/MS 1 x PS2 Keyboard and Mouse
DVI 1 x DVI connector1, resolution up to 1600 x 1200 (UXGA)
Indicators LED for power, IDE
Digital Input 4ch
Digital Output 4ch
Analog Input 2ch

Mechanical & Environmental

Operating Temp. -10 ~ 60°C (14 ~ 140ºF)
Storage Temp. -20 ~ 80°C (-4 ~ 176ºF)
Operating Humidity 10 ~ 95% RH @40°C (non-condensing)
Vibration Protection 1Grms
Dimensions (W x D x H) 242.5 x 89 x 138 mm (9.55" x 3.5" x 5.43")
Weight (Net) 3.9kg (8.58 lb)
Mounting Support wall-mounting
General
Certification CCC, CE, FCC, CB
Enclosure Aluminum

OS Support Microsoft Windows XP/XPe/CE.Net, Linux
Watchdog Timer 255-level reset

Ordering Information

Arpex-2610 - 2U fanless embedded computing with Intel Atom™ N270 1.6GHz processor, PCI, PC/104, Mini PCI, dual GbE LAN and DVI

Arpex-2610-W - Arpex-2610 with wireless LAN module (Mini PCI, 802.11 b/g)
